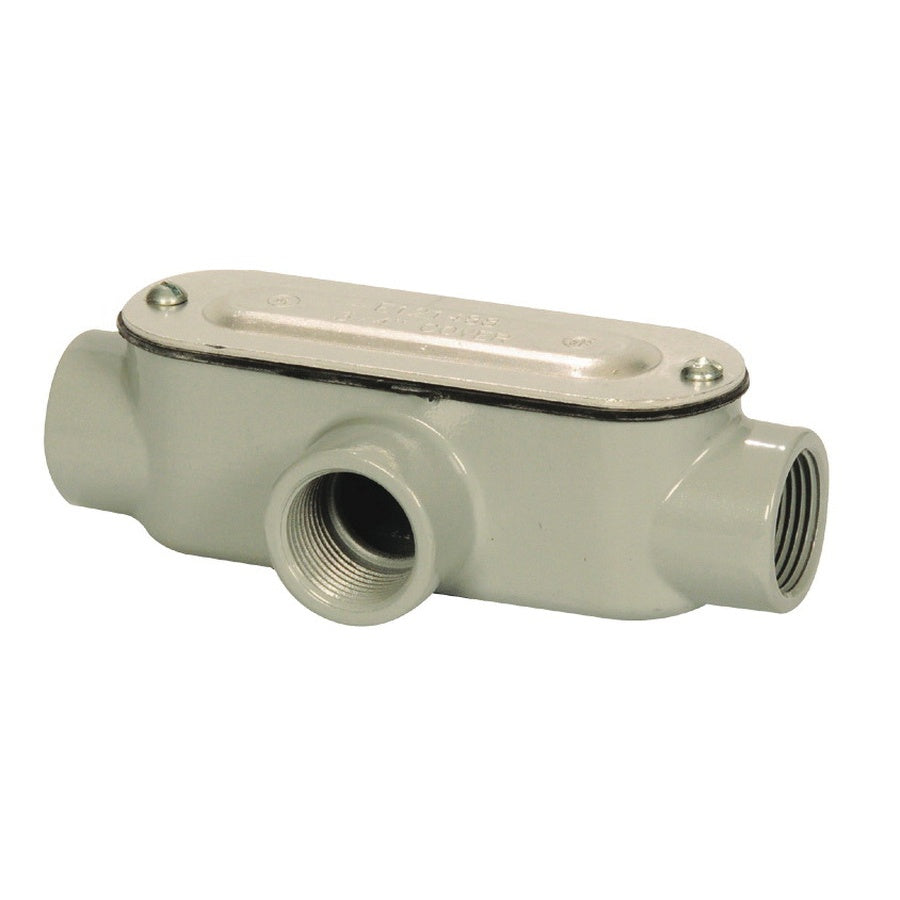

Sepco T2ACG Die Cast Copper Free Aluminum Type T Conduit Body With Cover And Gasket 3/4-Inch

Product Description

Sepco T2ACG is a type T conduit body made of die-cast copper-free aluminum. This product protects and directs rigid and IMC conduits through three NPT threaded tapered tee hubs. It has a cubic capacity of seven point twenty-five cubic inches and accommodates three six AWG conductors.

• Neoprene gasket and stamped cover seals out dust.
• Corrosion-resistant die-cast copper-free aluminum construction.
• Flat back design for easy mounting on flat surfaces.

Product Highlights

This conduit body offers side access to conductors for pulling, splicing, and maintenance. It comes with a gasket and screw-on cover to protect the conduits from damage.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: T2ACG

Technical Specifications

• Trade Size: 3/4 Inch
• Conduit Body Style: Type T
• Number of Hubs: 3
• Cover Type: Screw-On
• Access: Side
• Conductor Capacity: (3) 6 AWG
• Cubic Capacity: 7.25
• Dimensions: 5.56 Inch Length x 2.25 Inch Width x 1.63 Inch Height
• Material: Copper-Free Die Cast Aluminum
• Finish: Aluminum Enamel
• For Use With: Rigid Conduit/IMC
• Hub Placement: Tee
• Standards: UL E198259 Listed, cULus Certified
