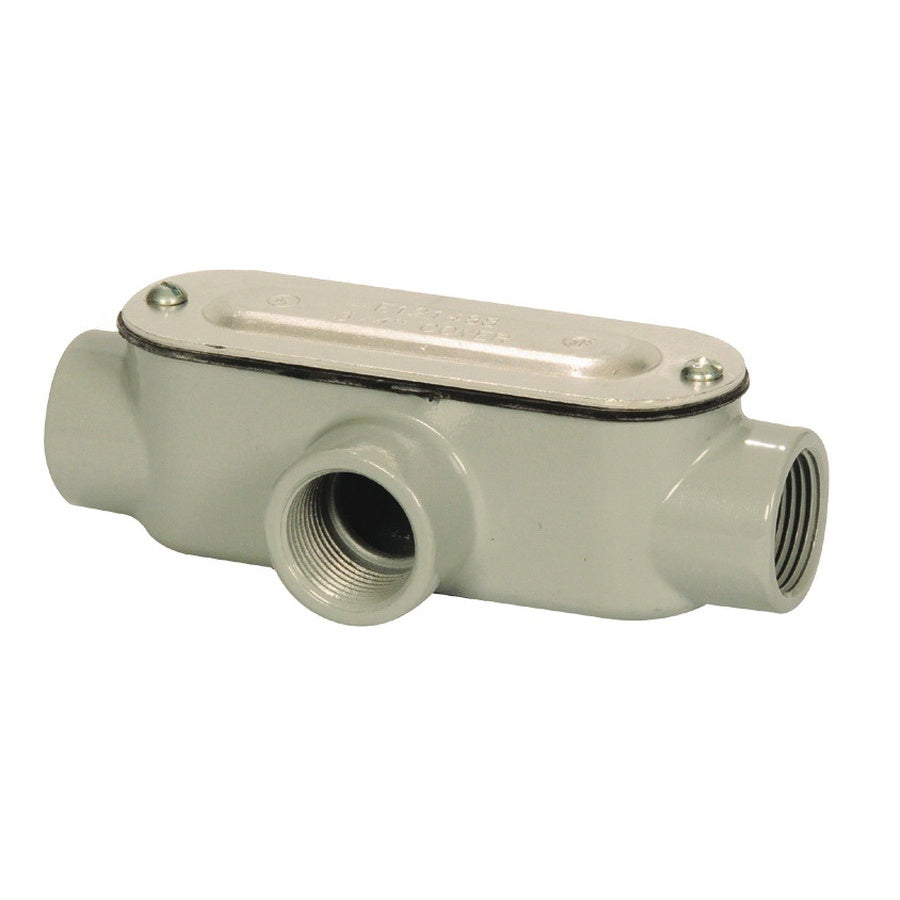

Sepco T1ACG Die Cast/Copper-Free Aluminum Type T Conduit Body With Cover And Gasket 1/2 Inch

Product Description

The Sepco T1ACG is a die cast and copper-free aluminum type T conduit body designed for size 1/2 inch. It protects and guides conduits through three tapered NPT threaded hubs arranged in a tee shape.

• Constructed from durable die-cast and copper-free aluminum.
• Offers a cubic capacity of 4.35 cubic inches.
• Includes a gasket and screw-on cover for protection.

Product Highlights

This conduit body is ideal for both pulling and splicing conductors and is suitable for threaded rigid conduit and IMC. It is cULus and UL E198259 listed for safety.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: T1ACG

Technical Specifications

• Trade Size: 1/2 Inch
• Conduit Body Style: Type T
• Number of Hubs: 3
• Cover Type: Screw-On
• Access: Side
• Cubic Capacity: 4.35
• Material: Die Cast/Copper-Free Aluminum
• Dimensions: 4.75 Inch Length x 2.06 Inch Width x 1.38 Inch Height
• Finish: Aluminum Enamel
• For Use With: Threaded Rigid/IMC Conduit
• Hub Placement: Tee
