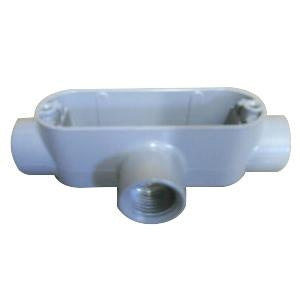

Sepco T1A Die Cast Copper Free Aluminum Type T Conduit Outlet Body 1/2-Inch

Product Description

The Sepco T1A is a conduit outlet body designed for electrical installations. This outlet body is made from die-cast copper-free aluminum, ensuring durability and resistance to corrosion. With a trade size of one half inch, it is suitable for use in both rigid and intermediate metal conduit (IMC) systems. The dimensions of this conduit body are four point seventy-five inches in length, two point zero six inches in width, and one point thirty-eight inches in height, providing a cubic capacity of four point thirty-five cubic inches.

• Constructed from die-cast copper-free aluminum
• Features a flat back for easy mounting against walls
• UL and cULus listed for safety compliance

Product Highlights

This conduit outlet body includes tapered threaded hubs for secure connections and provides access to conductors for pulling and splicing. It is built with a screw-on cover type and designed with side access for convenience during installation.

Product Information

Standard Information

• Brand: Sepco
• Part Number: T1A

Technical Specifications

• Trade Size: 1/2 Inch
• Conduit Body Style: Type T
• Number of Hubs: 3
• Cover Type: Screw-On
• Access: Side
• Cubic Capacity: 4.35
• Material: Copper-Free Die Cast Aluminum
• Dimensions: 4.75 Inch Length x 2.06 Inch Width x 1.38 Inch Height
• Finish: Aluminum Enamel
• For Use With: Threaded Rigid/IMC Conduit
• Connection Type: Threaded
• Manufacturer Name: Sepco
• Standards: cULus Certified, UL Listed E198259
