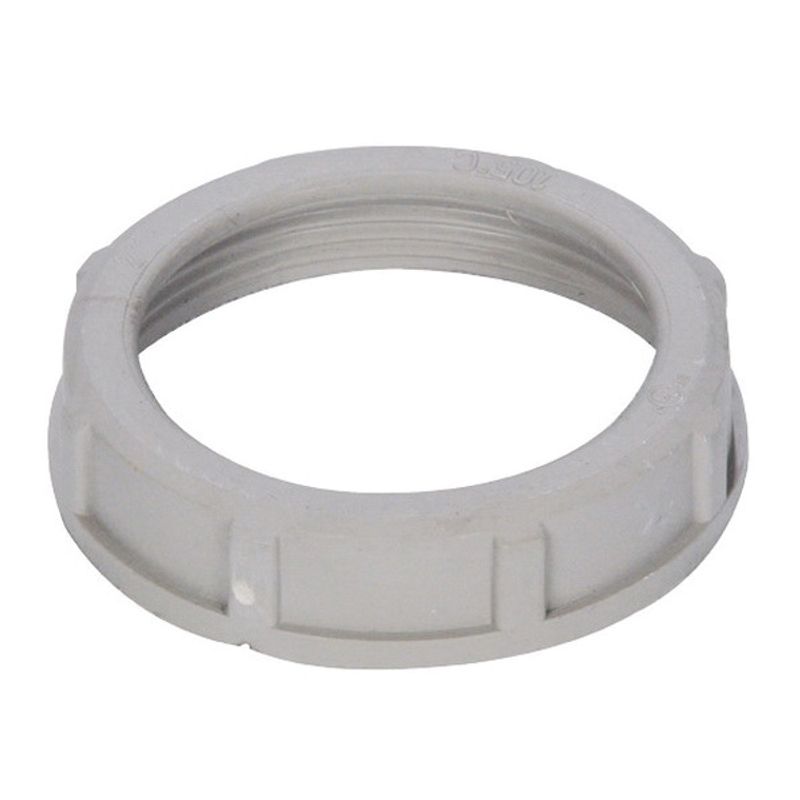

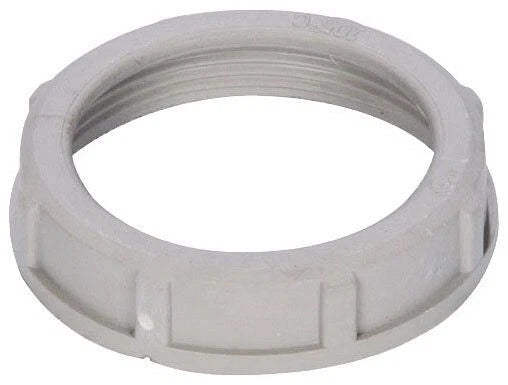

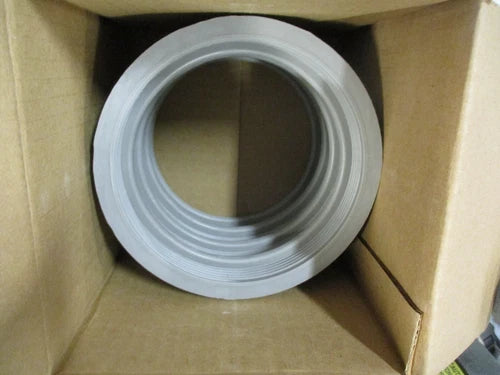

SEPCO ST20 5-Inch Polypropylene Insulated Bushing

Product Description

The SEPCO ST20 is a five-inch bushing made for rigid and IMC conduit. This product is composed of flame-retardant polypropylene for insulation and protection of conductors. The bushing is designed with a threaded connection for secure attachment. It has an outside diameter of six point three eight inches and a length of one inch. The SEPCO ST20 can withstand temperatures up to one hundred five degrees Celsius. This bushing is essential for routing and terminating wires within electrical systems, offering protection against abrasion and potential damage. The polypropylene material lends itself to electrical insulation and resistance against environmental elements.

• Designed for use with rigid and IMC conduit systems.
• Constructed from flame-retardant polypropylene material.
• Features a threaded connection for secure installation.

Product Highlights

Ideal for electrical installations requiring insulated bushings for secure wire connections.

Product Information

Standard Information

• Brand: SEPCO
• MPN: ST20

Technical Specifications

• Trade Size: 5 Inch
• Outside Diameter: 6.38 inches
• Connection Type: Threaded
• For Use With: Rigid/IMC Conduit
• Temperature Rating: 105 degrees Celsius
• Length: 1 inch
• Material: Flame Retardant Polypropylene
