Product Description

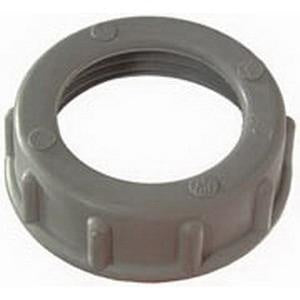

The Sepco ST18 is a polypropylene insulated plastic bushing designed for use in electrical conduit systems. This product features a threaded connection to ensure secure installation. It is suitable for threaded rigid conduit and intermediate metal conduit (IMC). The bushing measures four point four one inches in diameter and zero point seven one inches in length, with a trade size of three and one-half inches.
- Constructed from thermoplastic material for heat and impact resistance
- Rated for a temperature up to one hundred five degrees Celsius
- Meets UL 514B listing and CSA certification standards
Product Highlights
This bushing provides a smooth, rounded bearing surface for reliable wire and cable management, enhancing performance and safety.
Product Information
Standard Information
Technical Specifications
-
Material: Polypropylene
-
Temperature Rating: 105 deg C
-
Trade Size: 3-1/2 Inch
-
Outside Diameter: 4.41 inches
-
Length: 0.71 inches
-
Connection Type: Threaded
-
Standards: UL 514B Listed, CSA Certified
-
For Use With: Threaded Rigid/IMC Conduit
