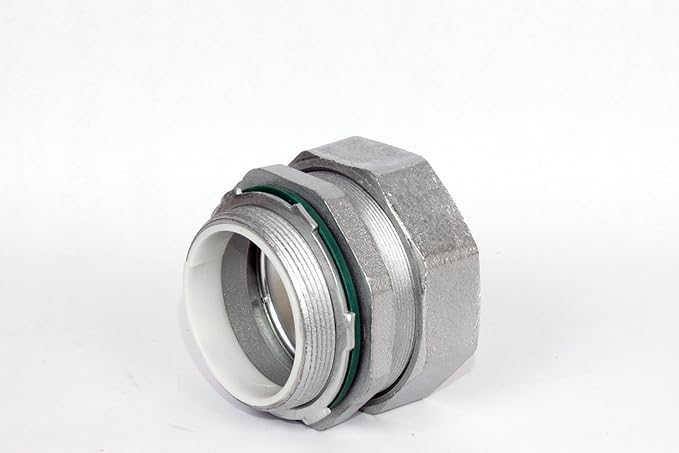

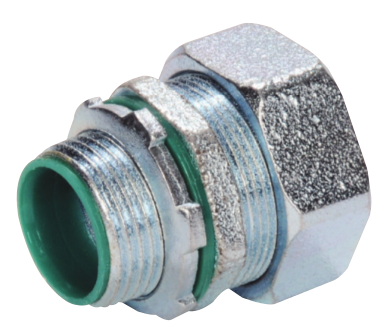

Sepco SLT61T Zinc Plated Malleable Iron Insulated Throat Liquidtight Straight Connector 4 Inch

Product Description

The SEPCO SLT61T is a 4-inch zinc-plated malleable iron insulated throat liquidtight straight connector. It is designed to secure, ground, and seal liquidtight flexible metal conduit to boxes and enclosures. Suitable for wet locations, it features a steel ferrule for enhanced durability.

• Suitable for wet locations
• Has steel ferrule
• Knockout of size 4 inches

Product Highlights

This liquidtight straight connector features a tapered threaded male hub NPT and is liquidtight, raintight, concrete tight, and oiltight.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: SLT61T
• Country of Origin: USA

Technical Specifications

• Brand: Sepco
• Manufacturer: Sepco
• UPC: 785994146193
• APPLICATION: To secure, ground and seal Liquidtight Flexible Metal conduit, to boxes and enclosures
• FEATURES: Tapered threaded male hub NPT Compact, slim diameter with small turning radius Furnished with an insulated throat with steel locknut and sealing ring Liquidtight/Raintight/Concrete tight/Oiltight Suitable for wet locations Long ferrule prevents pullout and tight bend conduit “pop-out” UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I
• STANDARD MATERIALS: Malleable Iron/Steel Furrule
• STANDARD FINISH: Zinc Plated
• UL LISTED: E198258
• Trade Size: 4 in
• Suitable For Use With: Flexible Metallic Liquid Tight Conduit
• Material: Malleable Iron
• Finish: Zinc Plated
• Country: USA
• Invoice Description: CONNECTOR CONDUIT LIQUIDTIGHT 4IN MI
• Item Features 01: Liquidtight, raintight, oiltight and concrete tight
• Item Features 02: Tapered threaded male hub NPT
• Item Features 03: Compact, slim diameter with small turning radius
• Item Features 04: Long ferrule prevents pullout and tight bend "pop-out"
• Item Features 07: Steel Ferrule
• Item Features 08: Suitable for Wet Locations
• Item Features 10: 4 in knockout size
• Item Features 11: 3.882 in ID x 4.411 in OD
• Item Features 12: 1-1/4 in L thread
