Sepco SLT40T Zinc Plated Malleable Iron Insulated Throat 90 Degree Liquidtight Connector 2 Inch

Product Description

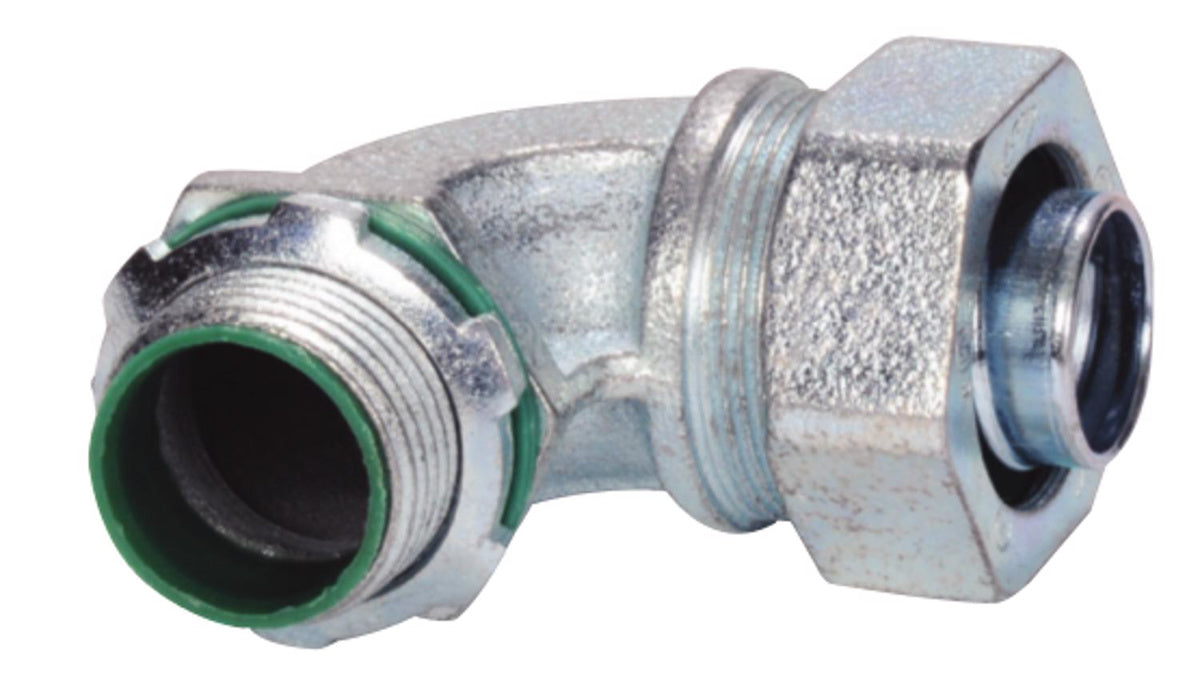

The SEPCO SLT40T is a zinc-plated malleable iron insulated throat 90-degree liquidtight connector with a 2-inch size. It is designed to secure ground seal liquidtight flexible metal conduit to boxes and enclosures. It is suitable for wet locations and concrete tight/oiltight/raintight applications.

• Features a tapered threaded male hub NPT compact slim diameter with small turning radius.

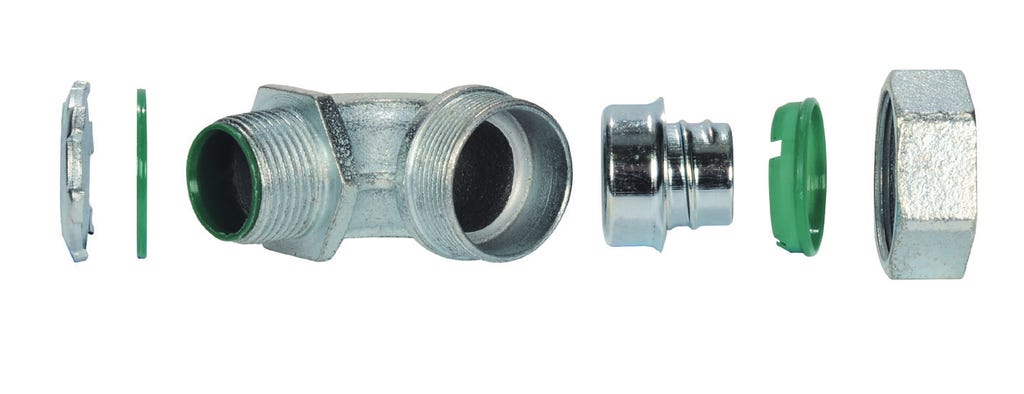

• Furnished with an insulated throat with steel locknut and sealing ring.
• Long ferrule prevents pullout and tight bend conduit “pop-out”.

Product Highlights

This 2-inch 90-degree liquidtight connector is made from zinc-plated malleable iron and features an insulated throat, making it suitable for various demanding environments.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: SLT40T

Technical Specifications

• Trade Size: 2”
• Ko Size: 2”
• I.D.: 1.995
• O.D.: 2.337
• Dim A: 3.18
• Dim B: 0.75
• Dim C: 2.97
• Dim D: 2.64
• Manufacturer: Sepco
• Size: 2 in
• Hazardous Rated: Hazardous Location
• Conduit Type: Liquidtight Flexible Metal Conduit
• Material: Malleable Iron
• Environmental Condition: Liquidtight, Oiltight, Raintight, Wet Location
• Insulation: Insulated
• Finish: Zinc-plated
• Fitting Type: Connector
• Connection Type: Compression x Threaded
• Angle: 90 deg
• Threaded: Yes
