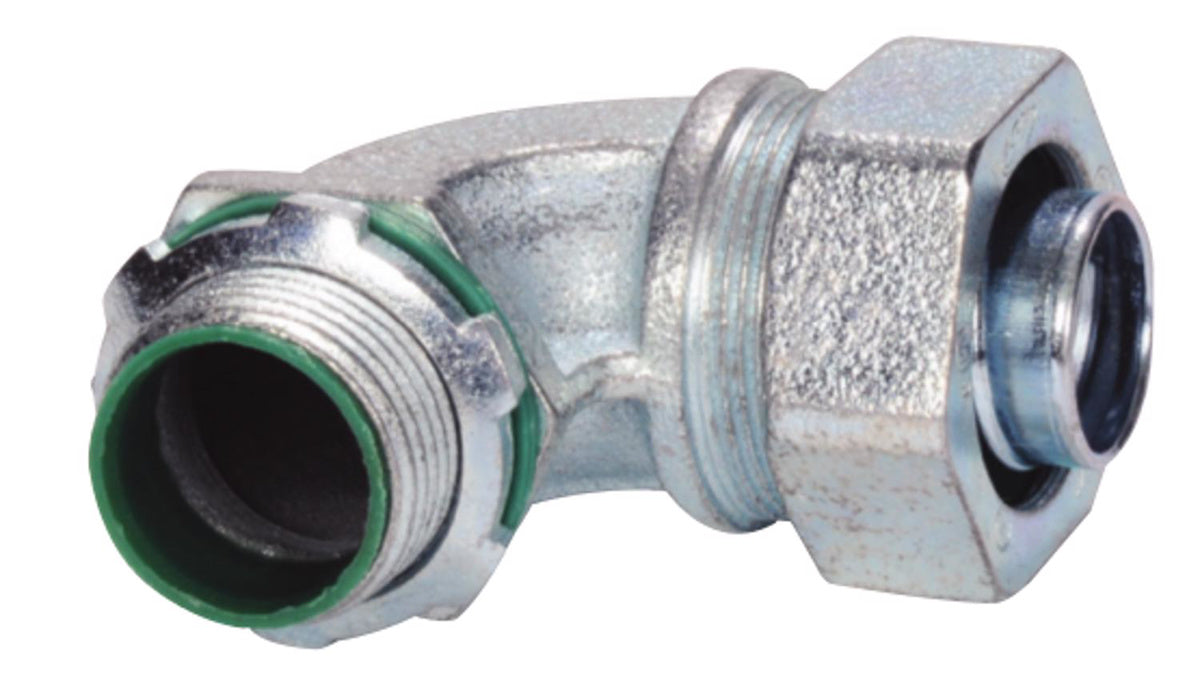

Sepco SLT38T Malleable Iron 90 Deg Liquidtight Connector 1-1/4 in

Product Description

The SEPCO SLT38T is a malleable iron 90-degree liquidtight connector designed to secure and ground seal liquidtight flexible metal conduit to boxes and enclosures. It features a tapered threaded male hub NPT and is furnished with an insulated throat with steel locknut and sealing ring. Suitable for wet locations.

• To secure, ground seal Liquidtight Flexible Metal conduit, to boxes and enclosures
• Tapered threaded male hub NPT Compact, slim diameter with small turning radius
• Furnished with an insulated throat with steel locknut and sealing ring

Product Highlights

This liquidtight connector is liquidtight, raintight, concrete tight and oiltight. It has a long ferrule to prevent pullout and tight bend conduit pop-out.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: SLT38T
• Country of Origin: USA

Technical Specifications

• STANDARD MATERIALS: Malleable Iron/Steel Ferrule
• STANDARD FINISH: Zinc Plated
• UL LISTED: E198258
• Application: For secure, ground and seal liquid tight flexible metal conduit, to boxes and enclosures
• Brand: Sepco
• Country: USA
• Invoice Description: CONNECTOR CONDUIT LIQUIDTIGHT 1-1/4IN MI
• Item Features 01: Liquidtight, raintight, oiltight and concrete tight
• Item Features 02: Tapered threaded male hub NPT
• Item Features 03: Compact, slim diameter with small turning radius
• Item Features 04: Long ferrule prevents pullout and tight bend "pop-out"
• Item Features 05: Aluminum grounding lug
• Item Features 06: Furnished with an insulated throat with steel locknut and sealing ring
• Item Features 07: Steel Ferrule
• Item Features 08: Suitable for Wet Locations
• Item Features 10: 1-1/4 in knockout size
• Item Features 11: 1.33 in ID x 1.605 in OD
• Item Features 12: 0.66 in L thread
• Manufacturer: Steel Electric Products
• Package Quantity: 1
• Angle: 90 Deg
• Finish: Zinc Plated
• Material: Malleable Iron
• Suitable For Use With: Flexible Metallic Liquid Tight Conduit
• Hazardous Rated: Hazardous Location
• Conduit Type: Liquidtight Flexible Metal Conduit
• Environmental Condition: Liquidtight, Oiltight, Raintight, Wet Location
• Insulation: Insulated
• Size: 1-1/4 in
• Fitting Type: Connector
• Connection Type: Compression x Threaded
• Threaded: Yes
• Catalog #: SLT38T
• ESC Part #: 55270
