Sepco SLT37T 1 in Liquidtight 90-Degree Insulated Throat Connector Malleable Iron

Product Description

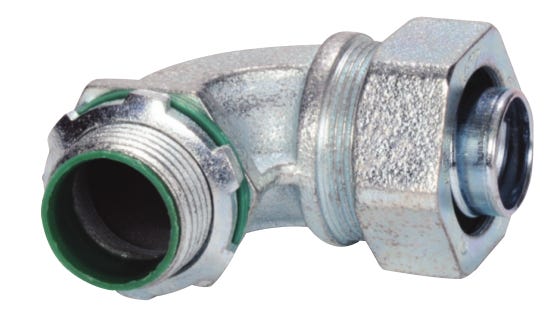

The SEPCO SLT37T 1 in Liquidtight 90-Degree Insulated Throat Connector is constructed from malleable iron with a steel ferrule and zinc plated finish. It secures and grounds Liquidtight Flexible Metal conduit to boxes and enclosures. It is UL Listed E198258 and suitable for wet locations.

• Features a tapered threaded male hub NPT compact slim diameter with small turning radius

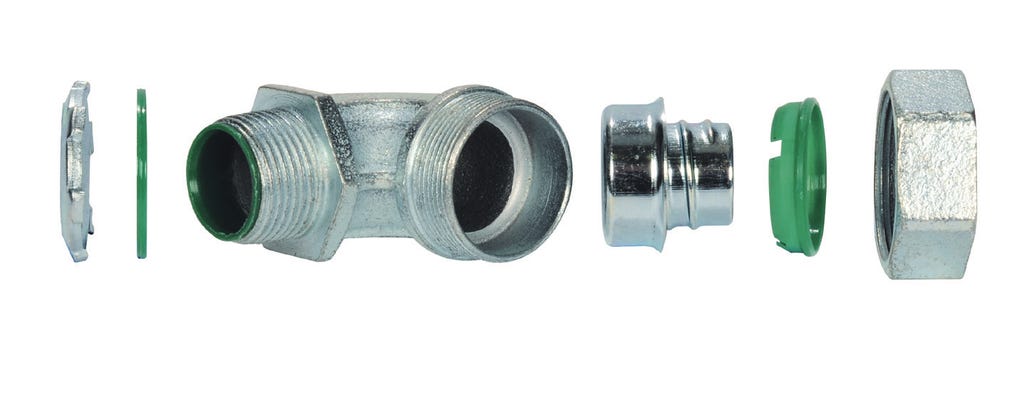

• Furnished with an insulated throat with steel locknut and sealing ring
• Liquidtight/Raintight/Concrete tight/Oiltight

Product Highlights

This 1 inch liquidtight connector ensures a secure and grounded seal for flexible metal conduits in various environments.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: SLT37T

Technical Specifications

• Trade Size: 1”
• Ko Size: 1”
• I.D.: 0.980
• O.D.: 1.261
• Dim A: 1.93
• Dim B: 0.65
• Dim C: 1.80
• Dim D: 1.81
• Manufacturer: Sepco
• Size: 1 In.
• Application: To secure, ground seal Liquidtight Flexible Metal conduit, to boxes and enclosures
• Standard Materials: Malleable Iron/Steel Ferrule
• Standard Finish: Zinc Plated
• UL Listed: E198258
• Angle: 90 deg
• Suitable For Use With: Flexible Metallic Liquid Tight Conduit
• Material: Malleable Iron
