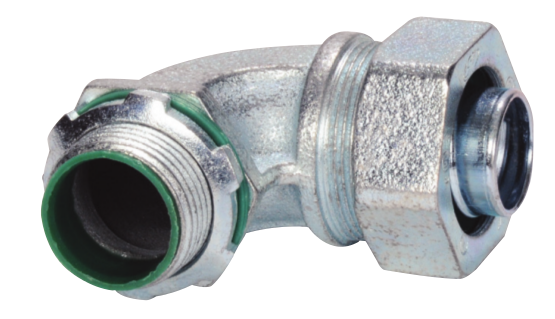

The SEPCO SLT36T is a malleable iron 90° liquidtight connector designed to secure and ground seal liquidtight flexible metal conduit to boxes and enclosures. It features a tapered threaded male hub NPT and a compact, slim diameter with a small turning radius. Furnished with an insulated throat with steel locknut and sealing ring, it is suitable for wet locations.
Secures and ground seals liquidtight flexible metal conduit
Features a tapered threaded male hub NPT
Liquidtight, raintight, oiltight and concrete tight
Product Highlights
This 90° liquidtight connector is UL Listed and suitable for hazardous locations under NEC standards. It has a long ferrule that prevents pullout and tight bend conduit pop-out.
Product Information
Standard Information
Brand: SEPCO
Manufacturer Part Number: SLT36T
Country of Origin: USA
Technical Specifications
Application
To secure, ground seal Liquidtight Flexible Metal conduit, to boxes and enclosures
Features
Tapered threaded male hub NPT Compact, slim diameter with small turning radius Furnished with an insulated throat with steel locknut and sealing ring Liquidtight/Raintight/Concrete tight/Oiltight Suitable for wet locations Long ferrule prevents pullout and tight bend conduit “pop-out” UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I
