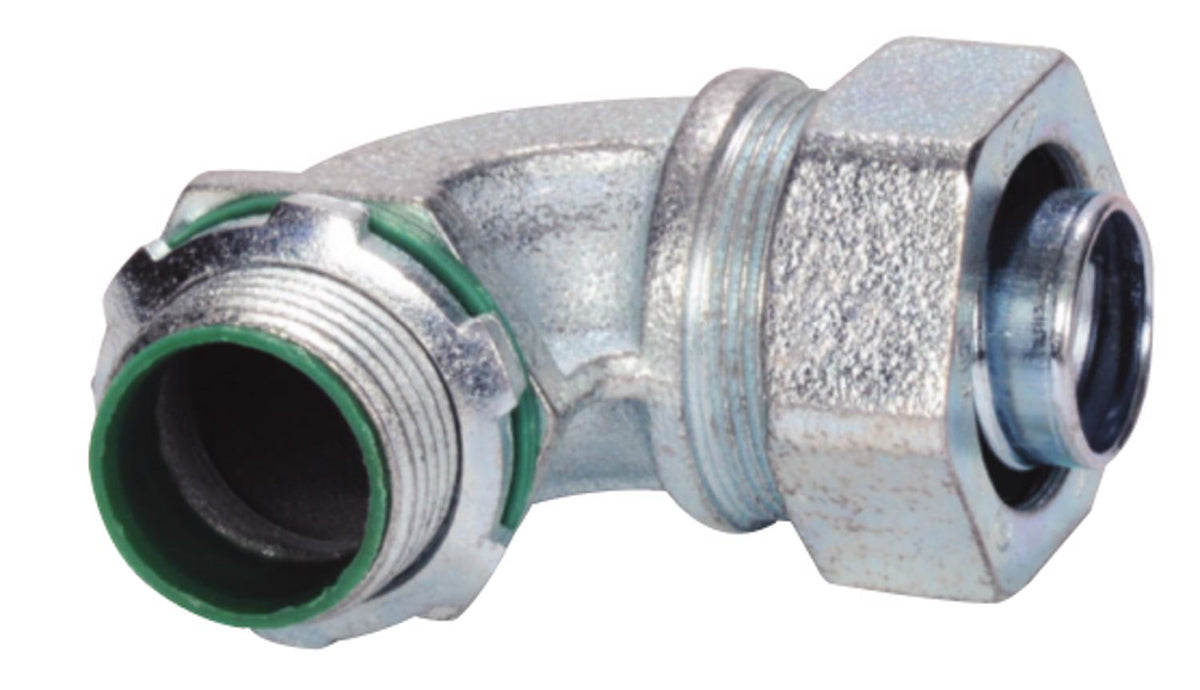

Sepco SLT35T 1/2 in Liquidtight 90-Degree Insulated Throat Connector Malleable Iron

Product Description

The Sepco SLT35T is a 1/2 in liquidtight 90-degree insulated throat connector made from malleable iron. It is designed to secure and ground seal liquidtight flexible metal conduit to boxes and enclosures. The connector features a tapered threaded male hub NPT and a compact, slim diameter with a small turning radius. It is suitable for wet locations.

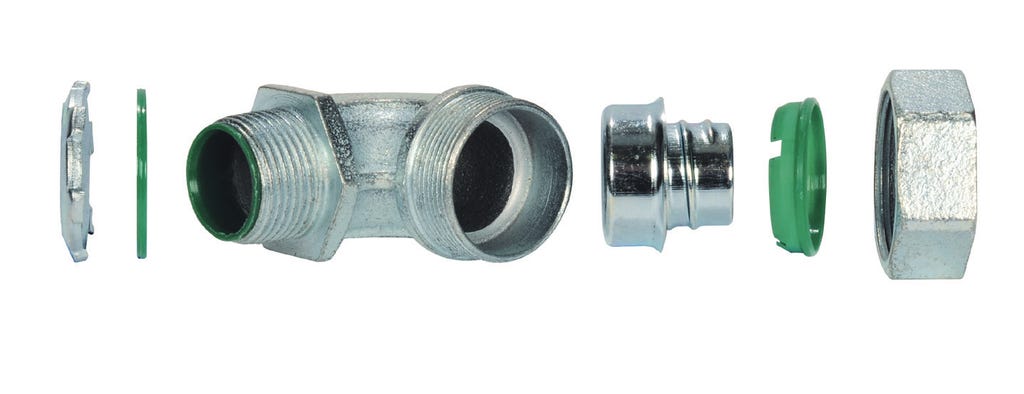

• Furnished with an insulated throat with steel locknut and sealing ring
• Liquidtight, raintight, concrete tight, and oiltight
• Long ferrule prevents pullout and tight bend conduit pop-out

Product Highlights

This 90-degree liquidtight connector is UL Listed and suitable for use in hazardous locations under NEC standards.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: SLT35T
• Country of Origin: USA

Technical Specifications

• Trade Size: 1/2 in
• Ko Size: 1/2”
• I.D.: 0.590
• O.D.: 0.793
• Application: To secure, ground seal Liquidtight Flexible Metal conduit, to boxes and enclosures
• Materials: Malleable Iron/Steel Ferrule
• Finish: Zinc Plated
• UL Listed: E198258
• Country: USA
• Item Features 01: Liquidtight, raintight, oiltight and concrete tight
• Item Features 02: Tapered threaded male hub NPT
• Item Features 03: Compact, slim diameter with small turning radius
• Item Features 04: Long ferrule prevents pullout and tight bend "pop-out"
• Item Features 05: Aluminum grounding lug
• Item Features 06: Furnished with an insulated throat with steel locknut and sealing ring
• Item Features 07: Steel Ferrule
• Item Features 08: Suitable for Wet Locations
• Item Features 10: 1/2 in knockout size
• Item Features 11: 0.59 in ID x 0.793 in OD
• Item Features 12: 1/2 in L thread
• Package Quantity: 1
• Angle: 90 deg
• Material: Malleable Iron
• Suitable For Use With: Flexible Metallic Liquid Tight Conduit
• Hazardous Rated: Hazardous Location
• Conduit Type: Liquidtight Flexible Metal Conduit
• Environmental Condition: Liquidtight, Oiltight, Raintight, Wet Location
• Insulation: Insulated
• Threaded: Yes
