SEPCO SLT35 45 Degree Liquidtight Connector 1/2 Inch

Product Description

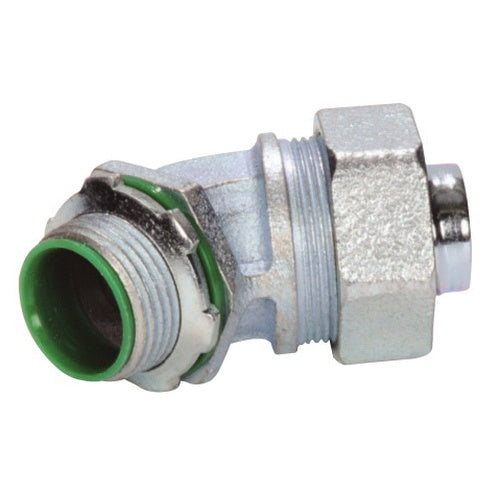

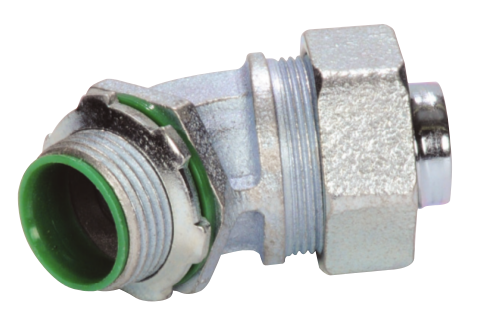

The SEPCO SLT35-45T is a 45-degree liquidtight connector. It is designed for use with ground and seal liquidtight flexible metal conduit. This connector connects to boxes and enclosures securely. It features a male tapered thread connection type and is built from malleable iron with a zinc-plated finish.

• Compact design allows for a small turning radius
• Provides liquid-tight, rain-tight, concrete-tight, and oil-tight connections
• Suitable for grounding applications

Product Highlights

This connector meets UL E198258 and cULus standards. It is suitable for hazardous locations under NEC 501-4(b) and NEC 502-4(a)(2). It is suitable for grounding in sizes from three-eighths inch through one and a half inch as per NEC 35I-I.

Product Information

Standard Information

• Brand: SEPCO
• MPN: SLT35-45T

Technical Specifications

• Fitting Type: Angled Connector
• Trade Size: 1/2 Inch
• Material: Malleable Iron
• Dimensions: 0.59 Inch ID x 1.25 Inch x 1.28 Inch x 1.51 Inch
• Connection Type: MNPT
• UPC: 78599414835
• GTIN: 00785994148357
