Sepco SLT33T 2-1/2 in Liquidtight Straight Insulated Throat Connector Malleable Iron

Product Description

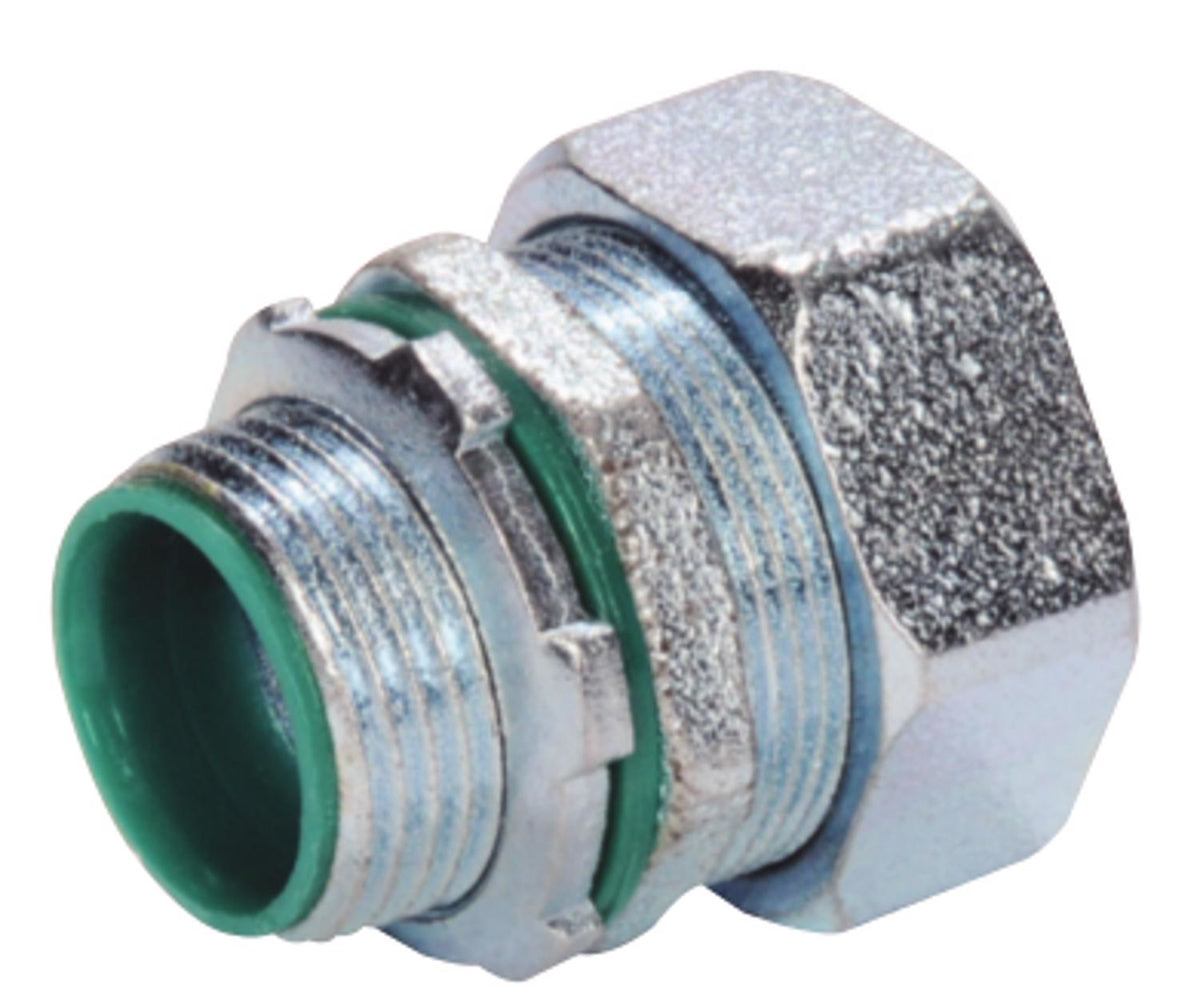

The SEPCO SLT33T 2-1/2 in Liquidtight Straight Insulated Throat Connector is made of malleable iron. It is designed to secure ground and seal Liquidtight Flexible Metal conduit to boxes and enclosures. The connector features a tapered threaded male hub NPT and is suitable for wet locations.

• Tapered threaded male hub NPT
• Compact slim diameter with small turning radius

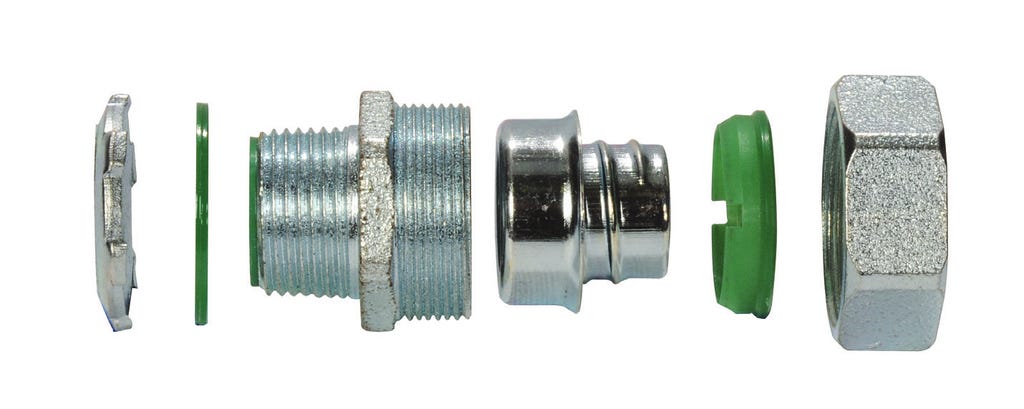

• Furnished with an insulated throat with steel locknut and sealing ring

Product Highlights

This liquidtight connector is liquidtight, raintight, concrete tight, and oiltight. It is UL Listed and suitable for use in hazardous locations.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: SLT33T
• Country of Origin: USA

Technical Specifications

• Trade Size: 2-1/2”
• Ko Size: 2-1/2”
• I.D.: 2.341
• O.D.: 2.797
• Dim A: 2.180
• Dim B: 1.010
• Dim C: 4.010
• Manufacturer: Sepco
• Size: 2-1/2 In.
• Application: To secure, ground and seal Liquidtight Flexible Metal conduit, to boxes and enclosures
• Hub: Tapered threaded male hub NPT
• Features: Compact, slim diameter with small turning radius
• Included: Furnished with an insulated throat with steel locknut and sealing ring
• Tightness: Liquidtight/Raintight/Concrete tight/Oiltight
• Location: Suitable for wet locations
• Ferrule: Long ferrule prevents pullout and tight bend conduit “pop-out”
• Hazardous Locations: UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I
• Standard Materials: Malleable Iron/Steel Furrule
• Standard Finish: Zinc Plated
• UL Listed: E198258
• Hazardous Rated: Hazardous Location
• Conduit Type: Liquidtight Flexible Metal Conduit
• Material: Malleable Iron
• Environmental Condition: Liquidtight, Oiltight, Raintight, Wet Location
• Insulation: Insulated
• Fitting Type: Connector
• Connection Type: Compression x Threaded
• Angle: Straight
• Threaded: Yes
• Brand (Description): Sepco
• Invoice Description: CONNECTOR CONDUIT LIQUIDTIGHT 2-1/2IN MI
• Item Features 01: Liquidtight, raintight, oiltight and concrete tight
• Item Features 02: Tapered threaded male hub NPT
• Item Features 03: Compact, slim diameter with small turning radius
• Item Features 04: Long ferrule prevents pullout and tight bend "pop-out"
• Item Features 05: Aluminum grounding lug
• Item Features 06: Furnished with an insulated throat with steel locknut and sealing ring
• Item Features 07: Steel Ferrule
• Item Features 08: Suitable for Wet Locations
• Item Features 10: 2-1/2 in knockout size
• Item Features 11: 2.341 in ID x 2.797 in OD
• Item Features 12: 1.01 in L thread
• Suitable For Use With: Flexible Metallic Liquid Tight Conduit
