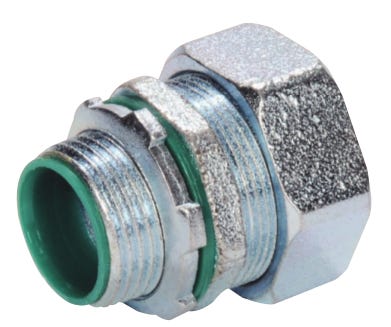

SEPCO SLT31 Liquid Tight Conduit Connector with Insulated Throat

Product Description

The SEPCO SLT31T is a liquid tight conduit connector designed for secure electrical installations. This product connects flexible metallic liquid tight conduit to electrical boxes and enclosures. Constructed from malleable iron with a zinc-plated finish, it features a tapered male NPT hub and an insulated throat. The included steel locknut and sealing ring ensure a tight fit. This connector is suitable for use in wet locations, providing reliable sealing against moisture and liquids.

• Liquidtight, raintight, oiltight, and concrete tight.
• Insulated throat, steel locknut, and sealing ring included.
• Long ferrule to prevent pullout and tight bend pop-out.

Product Highlights

The SEPCO SLT31T is ideal for ensuring safety and reliability in electrical connections in various applications including industrial settings and outdoor installations.

Product Information

Standard Information

• Trade Size: 1-1/2 inch
• Material: Malleable Iron (Body), Steel (Ferrule/Locknut/Sealing Ring)

Technical Specifications

• Finish: Zinc Plated
• Thread Type: Tapered threaded male hub NPT
• Inner Diameter: 1.53 inch
• Outer Diameter: 1.844 inch
• Thread Length: 0.73 inch
• Hex Nut Size: 2.44 inch
• Knockout Size: 1-1/2 inch
• UL Listing: E198258
• Hazardous Location Suitability: Class I, Div. 2; Class II, Div. 1 and 2; Class III, Div. 1 and 2
• Grounding Suitability: Suitable for grounding in sizes 3/8 through 1-1/2
