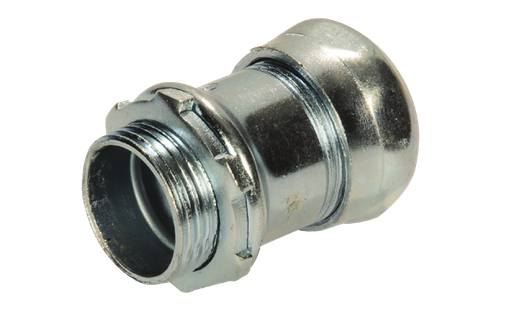

SEPCO S1015D Steel EMT Compression Connector 2-1/2

Product Description

The SEPCO S1015D is a steel EMT compression connector designed to secure EMT raceways to boxes and enclosures. This product is made of steel with a zinc-plated finish that offers durability and reliable performance in various environments. It provides a compression connection to male hub threads NPS. The connector is suitable for use with EMT conduit and is concrete-tight.

• Trade size of 2-1/2 inches
• Steel construction with zinc plating
• UL and cULus Listed

Product Highlights

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: S1015D

Technical Specifications

• Fitting Type: Connector
• Trade Size: 2-1/2 Inch
• Connection Type: Compression x Male NPS
• Material: Steel
• Finish: Zinc Plated
• Standards: cULus Certified, UL Listed E308075
• Dimensions: 2.51 Inch Length x 3.6 Inch Width
• Thread Length: 0.083
• For Use With: EMT Conduit
• Ko Size: 2-1/2
• UNSPSC: 39131700
• Item Name: EMT Compression Connector
