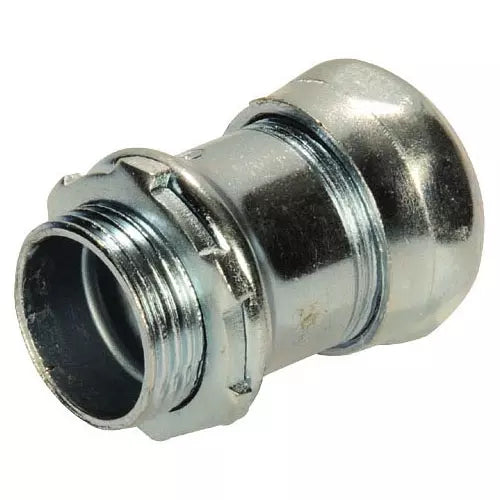

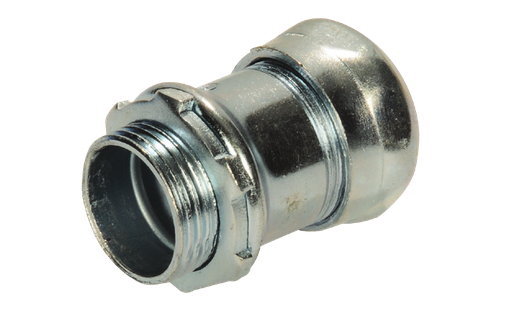

SEPCO S1013 EMT Compression Connector 1-1/4 Inch

Product Description

The SEPCO S1013 is a 1-1/4 inch EMT compression connector. It is made from steel with a zinc-plated finish. This connector is designed for use with EMT conduit. It provides a reliable compression connection to male NPS threads.

• Suitable for grounding and securing EMT raceways to boxes and enclosures.
• Thread length of 0.062 inches.
• Dimensions: 1.27 inches in length and 2.05 inches in width.

Product Highlights

This connector is essential for reliable electrical installations. It ensures stable connections in various applications involving EMT raceways.

Product Information

Standard Information

• Brand: SEPCO
• MPN: S1013

Technical Specifications

• Fitting Type: Connector
• Standards: cULus Certified, UL Listed E308075
• Trade Size: 1-1/4 Inch
• Thread Length: 0.062 inches
• Connection Type: Compression x Male NPS
• Dimensions: 1.27 inches Length x 2.05 inches Width
• Finish: Zinc Plated
• Material: Steel
• For Use With: EMT Conduit
• Item Name: EMT Compression Connector
• Manufacturer Name: SEPCO
• GTIN: 00785994610373
• UNSPSC: 39131700
