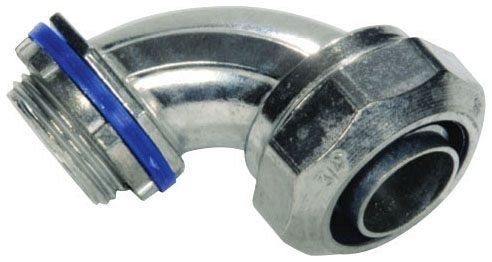

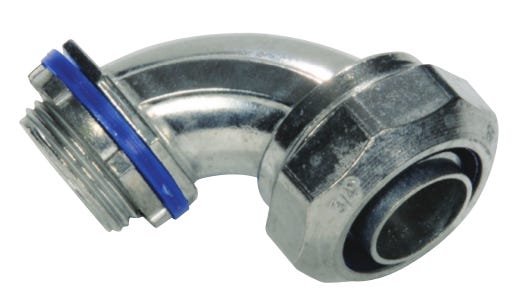

Sepco lt65 Liquidtight 90-degree Connector 2.5 in

Product Description

The SEPCO lt65 is a 2.5-inch trade-size liquidtight 90-degree connector machined from die-cast construction. It is designed to terminate liquidtight flexible metal conduit (LFMC) at a right-angle entry point into an enclosure, junction box, or panel knockout. The 90-degree body geometry reduces bending stress on the conduit jacket where space is limited and a straight connector cannot be routed cleanly. Electricians install this fitting when making final connections to motors, HVAC equipment, pumps, and other vibration-prone loads where a liquidtight seal and mechanical protection are both required.

This connector is suited for commercial and industrial installations where 2.5-inch LFMC terminates at equipment enclosures, motor control centers, or junction boxes. The 90-degree angle makes it particularly useful in tight equipment bays where conduit must turn immediately after exiting the fitting. Typical applications include HVAC unit connections, pump motor terminations, and industrial machine wiring where the conduit run must change direction close to the entry point.

Key Features

• 2.5-inch trade size fits standard 2.5-inch liquidtight flexible metal conduit
• 90-degree body angle allows right-angle conduit terminations in confined spaces
• Die-cast construction provides a rigid, durable fitting body
• Liquidtight design maintains a sealed connection to protect wiring from moisture and contaminants
• Suitable for motor, HVAC, and pump wiring terminations

Compatibility

Designed as an OEM-style fitting for use with 2.5-inch liquidtight flexible metal conduit in standard knockout applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 350 governing liquidtight flexible metal conduit. De-energize all circuits and lock out the panel before beginning any conduit termination work. Ensure the conduit jacket seats fully into the fitting body and the locknut is tightened securely against the enclosure wall to maintain the liquidtight seal and mechanical grip. Do not over-torque the fitting body, as die-cast materials can crack under excessive force.

Technical Specifications

• Trade Size: 2.5 inches
• Body Material: Die cast
• Connector Angle: 90 degrees
• Weight (per 100 pieces): 400 pounds

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: lt65
