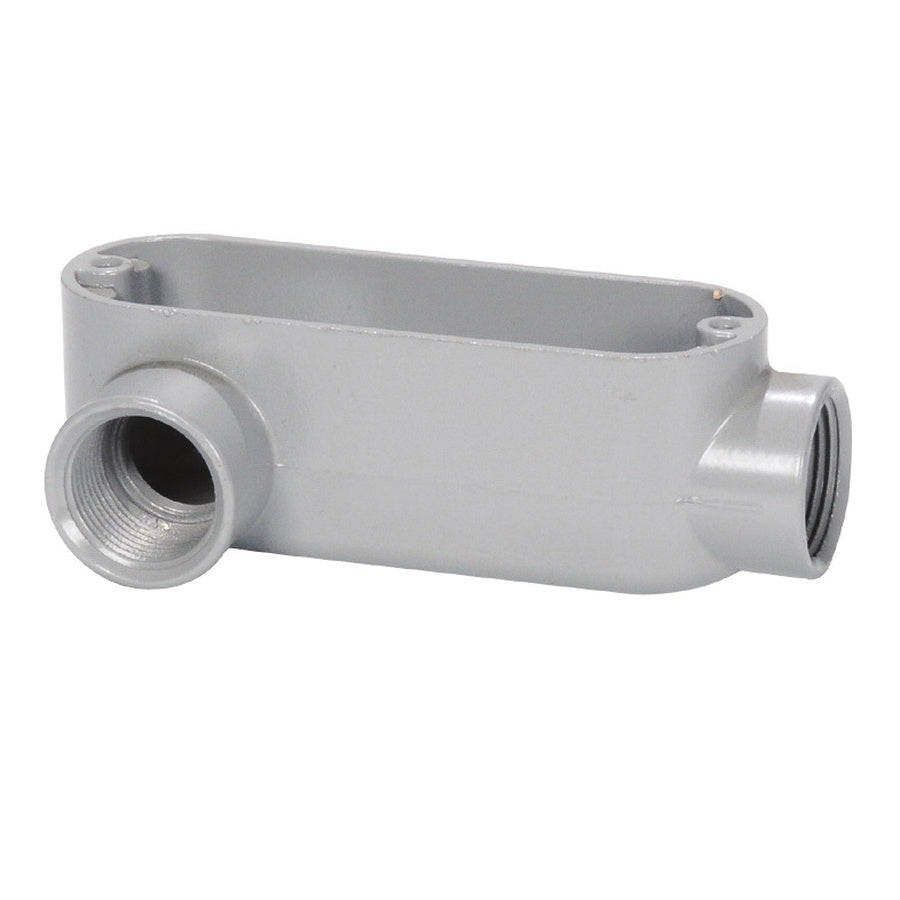

Sepco LR8A Copper-Free Die Cast Aluminum Type LR Conduit Body 3-Inch

Product Description

The Sepco LR8A is a copper-free die-cast aluminum conduit body designed for rigid conduit installations. With dimensions of twelve point seventy-five inches in length, five point five inches in width, and four point six eight two inches in height, it features a three-inch hub size and a threaded installation mechanism.

• Tapered threaded hubs (NPT)
• Raintight with gasketed covers
• Corrosion and weather resistant aluminum material

Product Highlights

This conduit body is ideal for accessing conductors for pulling, splicing, and maintenance. Its flat back design allows for easy mounting close to walls and ensures that conductors are accessible.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: LR8A

Technical Specifications

• Trade Size: Three Inch
• Conduit Body Style: Type LR
• Number of Hubs: Two
• Cover Type: Screw-On
• Material: Copper-Free Die Cast Aluminum
• Dimensions: Twelve point eighty-one inches length x five point seventy-five inches width x four point five inches height
• Connection Type: Threaded
• Conductor Capacity: (Three) 350 MCM
