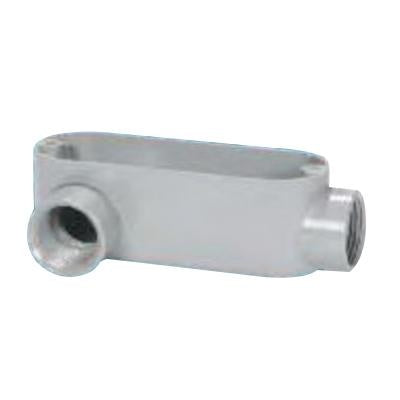

Sepco LR6A Die Cast Copper Free Aluminum Type LR Conduit Outlet Body 2-Inch

Product Description

The Sepco LR6A conduit outlet body is made from die-cast, copper-free aluminum. This product has a trade size of two inches, suitable for various installations. It features a flat back design for easy mounting close to walls.

• Constructed from corrosion-resistant aluminum
• Dimensions are 10.06 inches in length, 4.44 inches in width, and 3.38 inches in height
• Accommodates conductors up to size 4/0 AWG

Product Highlights

The conduit body allows access to conductors for pulling, splicing, and maintenance tasks. It is UL and cULus listed, confirming its compliance with safety standards.

Product Information

Standard Information

• Trade Size: 2 Inch
• Standards: cULus Certified, UL Listed E198259

Technical Specifications

• Conduit Body Style: Type LR
• Number of Hubs: 2
• Cover Type: Screw-On
• Conductor Capacity: 4/0 AWG
• Connection Type: Threaded
• Cubic Capacity: 69.7 cubic inches
• Material: Copper-Free Die Cast Aluminum
• Dimensions: 10.06 inches long x 4.44 inches wide x 3.38 inches high
• Finish: Aluminum Enamel
• For Use With: Threaded Rigid/IMC Conduit
• Hub Placement: 90 Degree
• Item Name: Conduit Outlet Body
• Manufacturer Part Number: LR6A
• Energy Star Flag: No
• Brand Name: Sepco
• UNSPSC: 39131708
