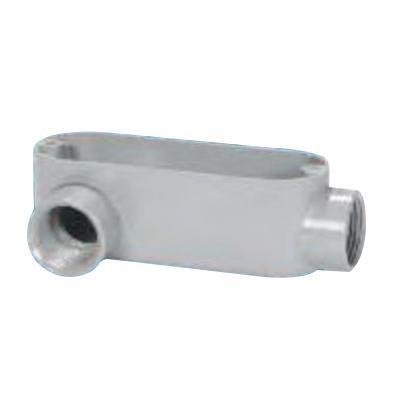

Sepco LR5A Die Cast Copper Free Aluminum Type LR Conduit Outlet Body 1-1/2 Inch

Product Description

The Sepco LR5A is a conduit outlet body designed for a trade size of one and one-half inches. This unit features a corrosion-resistant construction made from die-cast copper-free aluminum. It has a flat back design that allows for easy mounting against walls. The dimensions are seven point eighty-one inches in length, three point sixty-three inches in width, and two point five inches in height. It accommodates conductors up to size one over zero American Wire Gauge and has a cubic capacity of thirty-five point eight. This conduit body is ideal for use with rigid and Intermediate Metal Conduit (IMC) installations. It includes NPT connections and tapered threaded hubs for secure fittings, providing access for conductor pulling, splicing, and maintenance. This conduit body meets UL and cULus standards.

• Die-cast copper-free aluminum construction
• Trade size of one and one-half inches
• Dimensions of seven point eighty-one inches by three point sixty-three inches by two point five inches

Product Highlights

Robust design suitable for various conduit applications.

Product Information

Standard Information

• Trade Size: One and one-half inches
• Standards: cULus Certified, UL Listed E198259

Technical Specifications

• Conduit Body Style: Type LR
• Number of Hubs: Two
• Cover Type: Screw-On
• Conductor Capacity: One over zero AWG
• Connection Type: Threaded
• Cubic Capacity: Thirty-five point eight cubic inches
• Material: Copper-Free Die Cast Aluminum
• Finish: Aluminum Enamel
• Dimensions: Seven point eighty-one inches length x three point sixty-three inches width x two point five inches height
• For Use With: Threaded Rigid/IMC Conduit
• Hub Placement: Ninety degrees
• Item Name: Conduit Outlet Body
• Manufacturer Part Number: LR5A
