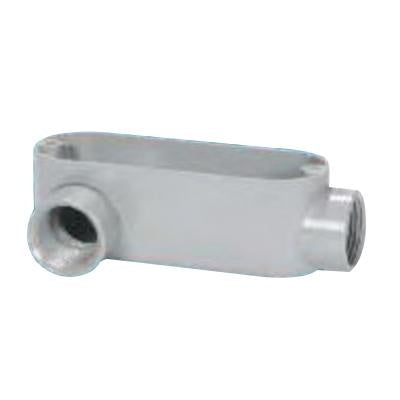

Sepco LR4A Die Cast Copper Free Aluminum Type LR Conduit Outlet Body 1-1/4 Inch

Product Description

Sepco offers the LR4A, a conduit outlet body designed for a trade size of 1-1/4 inches. This product features durable die-cast copper-free aluminum construction and an aluminum enameled finish. Its flat back design allows for easy installation close to walls. The dimensions are seven point eight one inches in length, three point six three inches in width, and two point five inches in height. This conduit body has a cubic capacity of thirty-five point eight cubic inches and can accommodate conductors up to size two AWG. It is suitable for threaded rigid and IMC conduits. The LR4A has a tapered threaded hub with NPT connection, offering access for conductor pulling, splicing, and maintenance. This conduit body meets UL and cULus standards.

• Constructed from die-cast copper-free aluminum
• Trade size of 1-1/4 inches
• Dimensions: seven point eight one inches by three point six three inches by two point five inches

Product Highlights

Reliable and efficient design for various conduit applications.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: LR4A

Technical Specifications

• Trade Size: 1-1/4 Inch
• Conduit Body Style: Type LR
• Number of Hubs: 2
• Cover Type: Screw-On
• Conductor Capacity: 2 AWG
• Connection Type: Threaded
• Cubic Capacity: 35.8
• Dimensions: 7.81 Inch Length x 3.63 Inch Width x 2.5 Inch Height
• Material: Copper-Free Die Cast Aluminum
• Finish: Aluminum Enamel
• For Use With: Threaded Rigid/IMC Conduit
• Hub Placement: 90 Degree
• Standards: cULus Certified, UL Listed E198259
