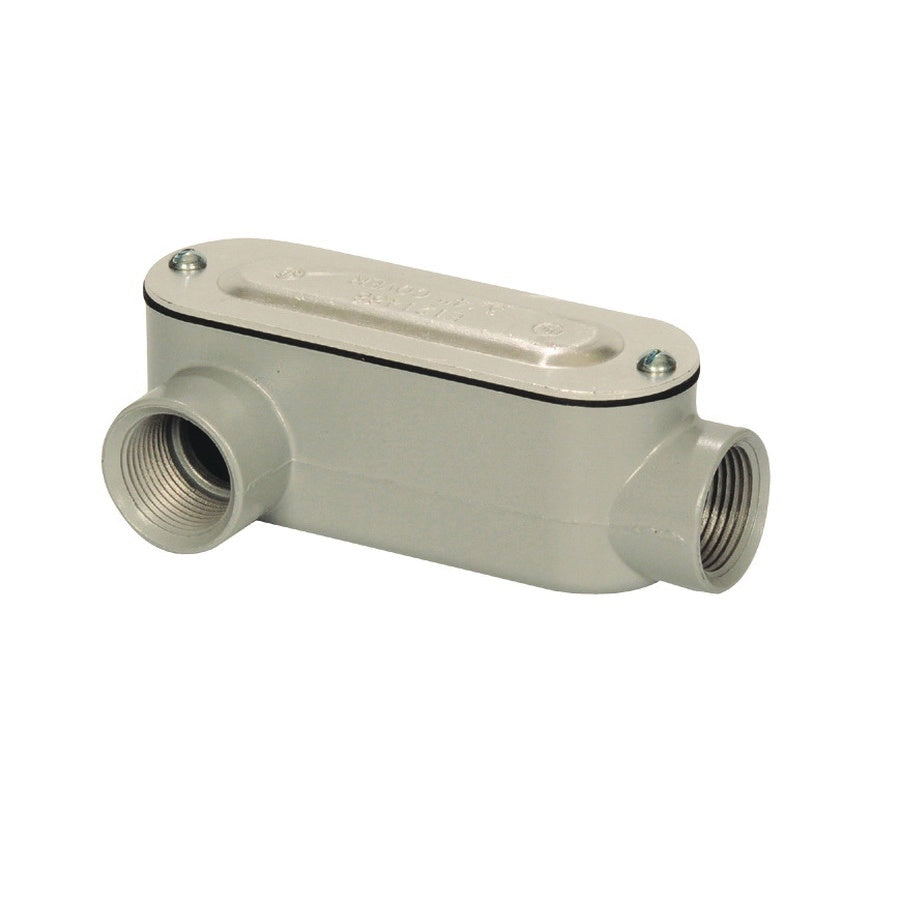

Sepco LR3ACG Die Cast Copper Free Aluminum Type LR Conduit Body With Cover And Gasket 1-Inch

Product Description

The Sepco LR3ACG is a die-cast copper-free aluminum conduit body designed to protect and route rigid/IMC conduits. It features two NPT threaded tapered hubs oriented at 90 degrees. This conduit body has a cubic capacity of 12.2 cubic inches and can accommodate three AWG conductors.

• Constructed from copper-free die-cast aluminum for durability.
• Right side access for easy conductor pulling and maintenance.
• Includes a gasket and screw-on cover for protecting conduits.

Product Highlights

This conduit body is suitable for various electrical installations, ensuring a secure connection for your conduit systems.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer: Sepco

Technical Specifications

• Trade Size: 1 Inch
• Conduit Body Style: Type LR
• Number of Hubs: 2.0000
• Cover Type: Screw-On
• Access: Right Side
• Conductor Capacity: (3) 4 AWG
• Cubic Capacity: 12.2
• Material: Copper-Free Die Cast Aluminum
