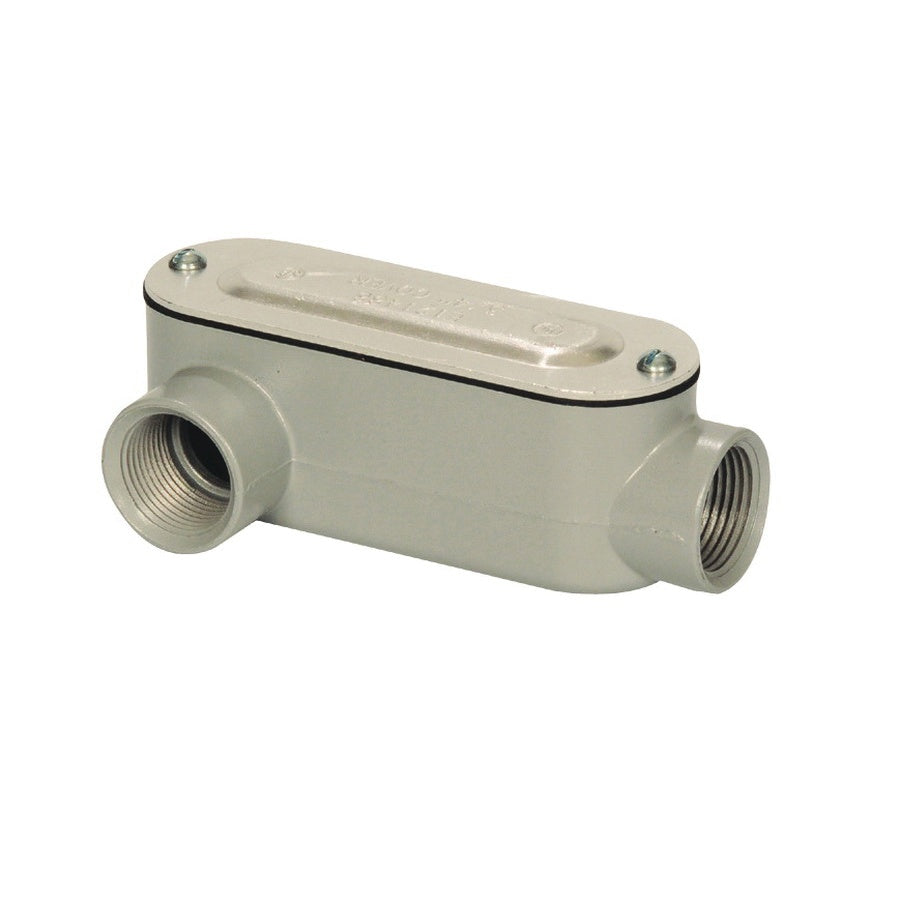

Sepco LR2ACG Die Cast Copper Free Aluminum Type LR Conduit Body With Cover And Gasket 3/4-Inch

Product Description

The Sepco conduit body, part number LR2ACG, is designed to protect and route rigid or IMC conduits. It features two NPT threaded hubs oriented at a ninety-degree angle. This conduit body is made from die-cast copper-free aluminum with an aluminum enameled finish. It has a cubic capacity of seven point three cubic inches and can accommodate three six AWG conductors. The right side access allows for easy conductor pulling, splicing, and maintenance. The product includes a gasket and screw-on cover to protect the conduits from damage.

• Die-cast copper-free aluminum for durability
• Right side access for convenience
• Includes gasket and screw-on cover

Product Highlights

This conduit body is UL E198259 listed and cULus certified, ensuring its reliability and compliance with safety standards.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: LR2ACG

Technical Specifications

• Trade Size: 3/4 Inch
• Conduit Body Style: Type LR
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Right Side
• Conductor Capacity: (3) 6 AWG
• Cubic Capacity: 7.3
• Material: Copper-Free Die Cast Aluminum
• Finish: Aluminum Enamel
• Dimensions: 5.06 Inch Length x 2.25 Inch Width x 1.63 Inch Height
• For Use With: Rigid Conduit/IMC
• Hub Placement: 90 Degree
• Energy Star Flag: No
• Standards: UL E198259 Listed, cULus Certified
