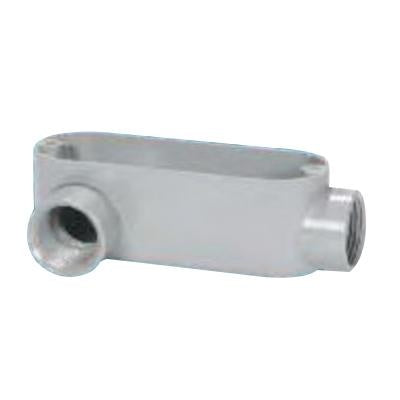

Sepco LR2A Die Cast Copper Free Aluminum Type LR Conduit Outlet Body 3/4-Inch

Product Description

Sepco LR2A is a conduit outlet body with a trade size of three-fourths of an inch. It features a corrosion-resistant design made from die-cast copper-free aluminum. This product ensures easy installation with its flat back design that allows mounting close to walls.

• Constructed from durable die-cast copper-free aluminum
• Dimensions: 5.06 inches by 2.25 inches by 1.63 inches
• Suitable for use with rigid and IMC conduits

Product Highlights

This conduit body provides access to conductors, making it ideal for pulling, splicing, and maintenance tasks. It is UL and cULus listed, ensuring safety and compliance with industry standards.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: LR2A

Technical Specifications

• Trade Size: 3/4 inch
• Conduit Body Style: Type LR
• Cubic Capacity: 7.3 cubic inches
• Conductor Capacity: 6 AWG
• Cover Type: Screw-On
• Connection Type: Threaded
• Dimensions: 5.06 inches (Length) x 2.25 inches (Width) x 1.63 inches (Height)
• Material: Copper-Free Die Cast Aluminum
