Sepco LR1ACG Die Cast Copper-Free Aluminum Type LR Conduit Body With Cover And Gasket 1/2 Inch

Product Description

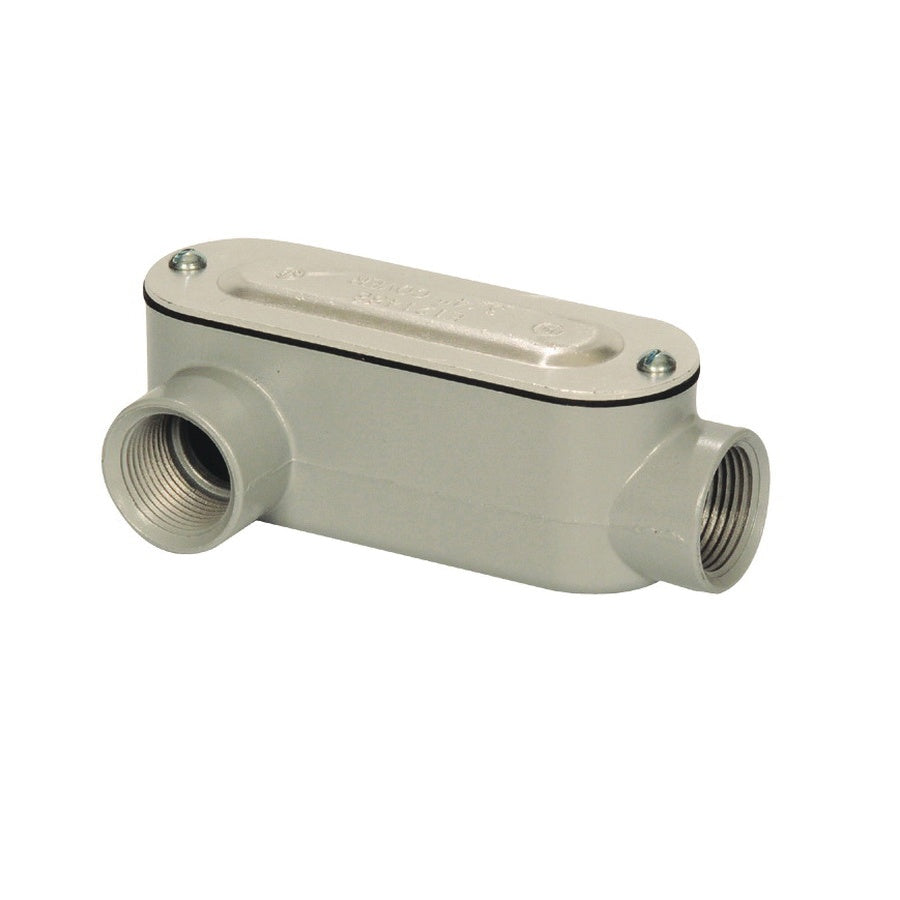

Sepco LR1ACG conduit body features a die-cast aluminum construction, ensuring durability and resistance to corrosion. It includes a neoprene gasket which enhances its performance in various environments. With a trade size of 1/2 inch, this conduit body has a right-side access and two hubs for easy connectivity. It allows for convenient pulling and splicing of conductors. The flat back design is suitable for close wall mounting, making installation efficient.

• Constructed from die-cast aluminum for enhanced durability
• Includes a neoprene gasket for superior sealing
• Designed for use with rigid and IMC conduits

Product Highlights

This conduit body is certified by UL E198259 and cULus, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: LR1ACG

Technical Specifications

• Trade Size: 1/2 inch
• Conduit Body Style: Type LR
• Number of Hubs: 2
• Access: Right Side
• Connection Type: NPT
• Cubic Capacity: 4.35 cubic inches
• Material: Die Cast Copper-Free Aluminum, Neoprene Gasket
• Dimensions: 4.31 inches Length x 2.06 inches Width x 1.38 inches Height
• Finish: Aluminum Enameled
• Hub Placement: 90 Degrees
