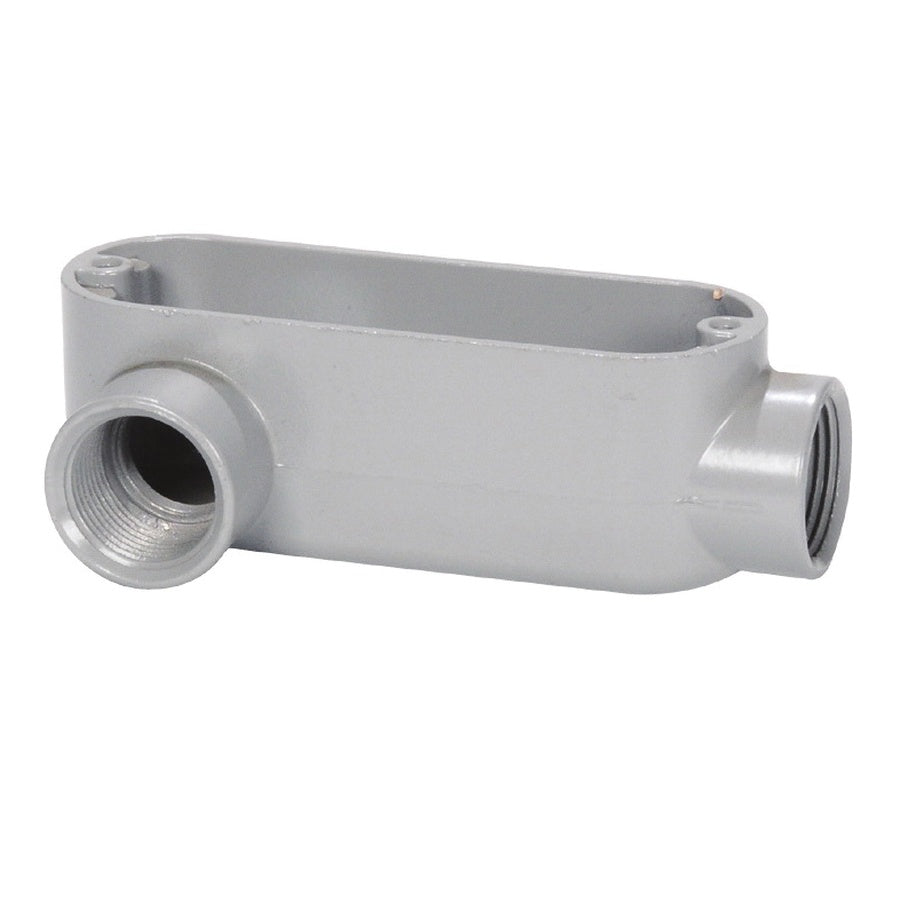

Sepco LR10A Sand-Cast/Copper Free Aluminum LR Style Conduit Body 4-Inch

Product Description

The Sepco LR10A conduit body features a robust sand-cast construction made from copper-free aluminum. This design enhances its resistance to corrosion and weather-related damage. It is specifically designed for use with threaded rigid and IMC conduit. The conduit body supports three conductors, accommodating size 350 MCM, while its dimensions measure fifteen point six two inches in length, eleven point six nine inches in width, and five point six three inches in height.

• Sustainable design using high-strength, copper-free aluminum
• Rain-tight when used with gasketed covers
• UL/cULus listed and CSA certified for safety

Product Highlights

This conduit body is ideal for maintenance tasks, offering quick access to conductors for pulling and splicing. It features a screw-on cover for secure closure and comes with a flat back design, making installation straightforward and reliable.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: LR10A

Technical Specifications

• Trade Size: 4 Inch
• Conduit Body Style: Type LR
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Right Side
• Conductor Capacity: (3) 350 MCM
• Connection Type: NPT
• Cubic Capacity: 308 Cubic Inches
• Material: Sand Cast/Copper-Free Aluminum
• Dimensions: 15.62 Inch Length x 11.69 Inch Width x 5.63 Inch Height
• Finish: Aluminum Enamel
• Hub Placement: 90 Degree
