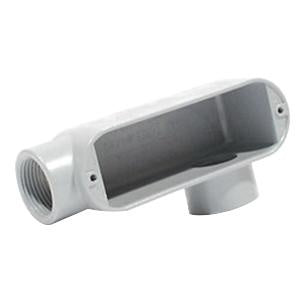

Sepco LL6A Die Cast Copper Free Aluminum Type LL Conduit Outlet Body 2-Inch

Product Description

The Sepco LL6A Die Cast Copper Free Aluminum Type LL Conduit Outlet Body is designed for conduit installations where access to conductors is required. This outlet body is constructed of a copper-free aluminum alloy, offering resistance to corrosion and weather conditions. The dimensions are ten point zero six inches in length, four point four four inches in width, and three point three eight inches in height. It serves well for pulling and splicing wires. The conduit body has a capacity of sixty-nine point seven cubic inches, accommodating up to three wires of size four-aught AWG. It is UL listed for safety and reliability.

• Rain-tight when used with gasketed covers
• Trade size of two inches
• Constructed from corrosion-resistant copper-free aluminum

Product Highlights

This outlet body is suitable for thin wall conduits and features tapered threaded hubs, making it ideal for close mounting against walls.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: LL6A

Technical Specifications

• Trade Size: 2 Inch
• Standards: cULus Certified, UL Listed E198259
• Conduit Body Style: Type LL
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Left Side
• Conductor Capacity: 4/0 AWG
• Cubic Capacity: 69.7
• Material: Copper-Free Die Cast Aluminum
• Dimensions: 10.06 Inch Length x 4.44 Inch Width x 3.38 Inch Height
• Hub Placement: 90 Degree
• Finish: Aluminum Enamel
• For Use With: Threaded Rigid/IMC Conduit
