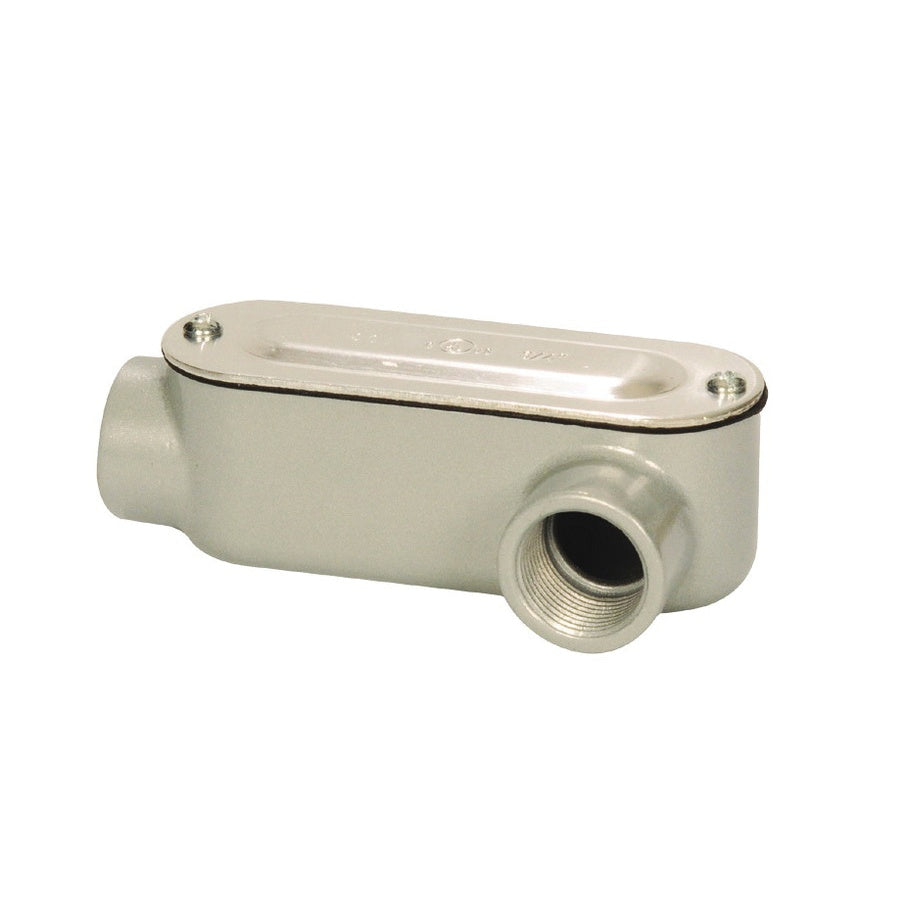

Sepco LL3ACG Die Cast/Copper-Free Aluminum Type LL Conduit Body With Cover And Gasket 1 Inch

Product Description

The Sepco LL3ACG conduit body is designed for trade size 1 inch. This unit directs and protects conduits using two tapered NPT threaded hubs that are positioned at a ninety-degree angle. The construction is of high-strength die-cast and copper-free aluminum, providing resistance to corrosion and weathering. It has a capacity of twelve point two cubic inches and can accommodate three 4 AWG conductors. The side access feature allows maintenance and adjustments to be made easily. The dimensions are five point eight seven inches in length, two point six three inches in width, and one point eight eight inches in height. A gasket and screw-on cover are included to protect the conduits from damage. This conduit body is compatible with threaded rigid conduit and IMC. The product is cULus and UL E198259 listed.

• Neoprene gasket and stamped cover seals out dust
• Flat back design ensures easy wall mounting
• Access for pulling, splicing, and maintenance

Product Highlights

This conduit body provides durability and ease of maintenance for conduit systems.

Product Information

Standard Information

• Brand: Sepco
• MPN: LL3ACG

Technical Specifications

• Trade Size: 1 Inch
• Conduit Body Style: Type LL
• Number of Hubs: 2
• Cover Type: Screw-On
• Dimensions: 5.87 Inch Length x 2.63 Inch Width x 1.88 Inch Height
• Cubic Capacity: 12.2
• Material: Die Cast/Copper-Free Aluminum
• Connection Type: Threaded
