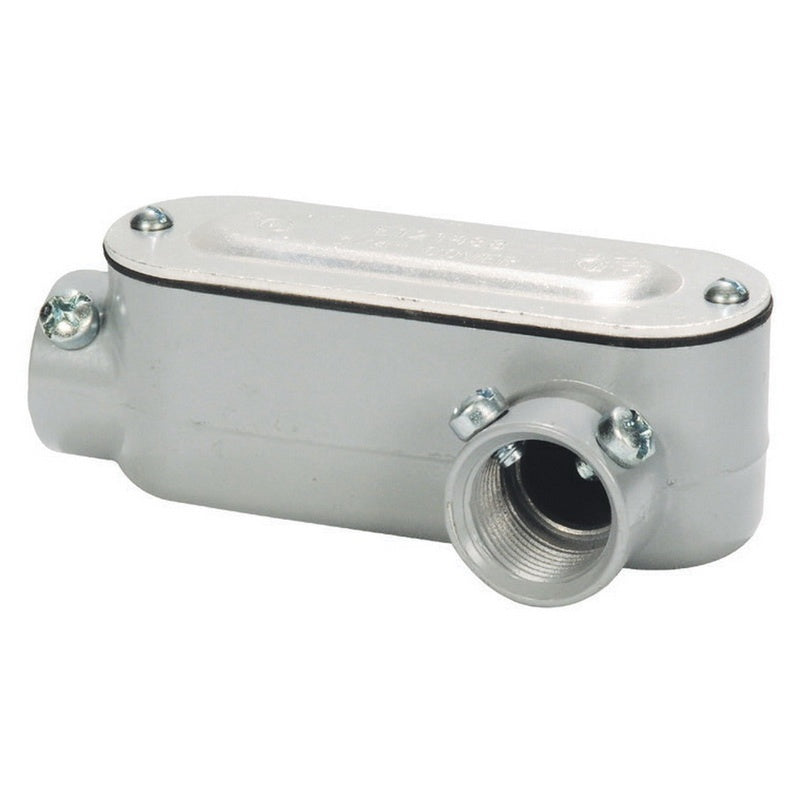

SEPCO LL2CA Type LL Conduit Body with Cover and Gasket

Product Description

The SEPCO LL2CA is a Type LL conduit body made to protect and direct conduits. This unit is made from die-cast, copper-free aluminum with an aluminum enamel finish that resists corrosion and weather elements. The conduit body has a trade size of three-fourths of an inch and a capacity of 7.3 cubic inches. It features two tapered NPT threaded hubs at a 90-degree angle, allowing for left side access for maintenance on conductors. A screw-on cover and gasket are included to keep the conduits safe from physical damage.

• Three-fourths inch trade size with 7.3 cubic inch capacity
• Die-cast copper-free aluminum construction with aluminum enamel finish
• Screw-on cover and gasket included for protection

Product Highlights

This product is suitable for use with threaded rigid, IMC, and EMT conduits.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: LL2CA

Technical Specifications

• Conduit Body Style: Type LL
• Material: Die Cast/Copper-Free Aluminum
• Finish: Aluminum Enamel
• Number of Hubs: 2
• Hub Placement: 90 Degree
• Connection Type: Threaded x Set Screw
• Conductor Capacity: Three 6 AWG
• Cubic Capacity: 7.3
• Dimensions: Five point zero six inches length x two point two five inches width x one point eight eight inches height
• Cover Type: Screw-On
• Access: Left Side
• For Use With: Threaded Rigid/IMC/EMT Conduits
• Standards: UL E198259 Listed, cULus Certified
• UPC: 78599464202
