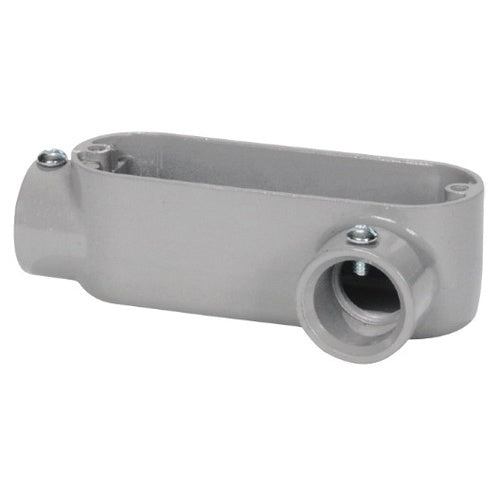

SEPCO LL2AT 3/4 Inch Type LL Conduit Body

Product Description

The SEPCO LL2AT is a 3/4-inch Type LL conduit body made for protecting and guiding EMT conduits. This unit is constructed from die-cast, copper-free aluminum with an aluminum enamel finish. It features two set screw threaded hubs oriented at ninety degrees. It allows left-side access for conductor pulling, splicing, and maintenance. This conduit body can hold three six AWG conductors and comes with a screw-on cover to ensure the safety of conduits.

• Trade size of three-fourths inch.
• Includes set screw connections for easy assembly.
• Offers left side access to conductors.

Product Highlights

The SEPCO LL2AT conduit body is essential for reliable electrical installations, ensuring efficient conductor management and access.

Product Information

Standard Information

• Trade Size: 3/4 Inch
• Material: Copper-Free Die Cast Aluminum

Technical Specifications

• Conduit Body Style: Type LL
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Left Side
• Conductor Capacity: (3) 6 AWG
• Connection Type: Set Screw
• Cubic Capacity: 7.3
• Dimensions: 5.06 Inch Length x 2.25 Inch Width x 1.63 Inch Height
• Finish: Aluminum Enamel
• For Use With: EMT Conduit
• Hub Placement: 90 Degree
• Manufacturer Part Number: LL2AT
• Standards: UL E198259 Listed, cULus Certified
