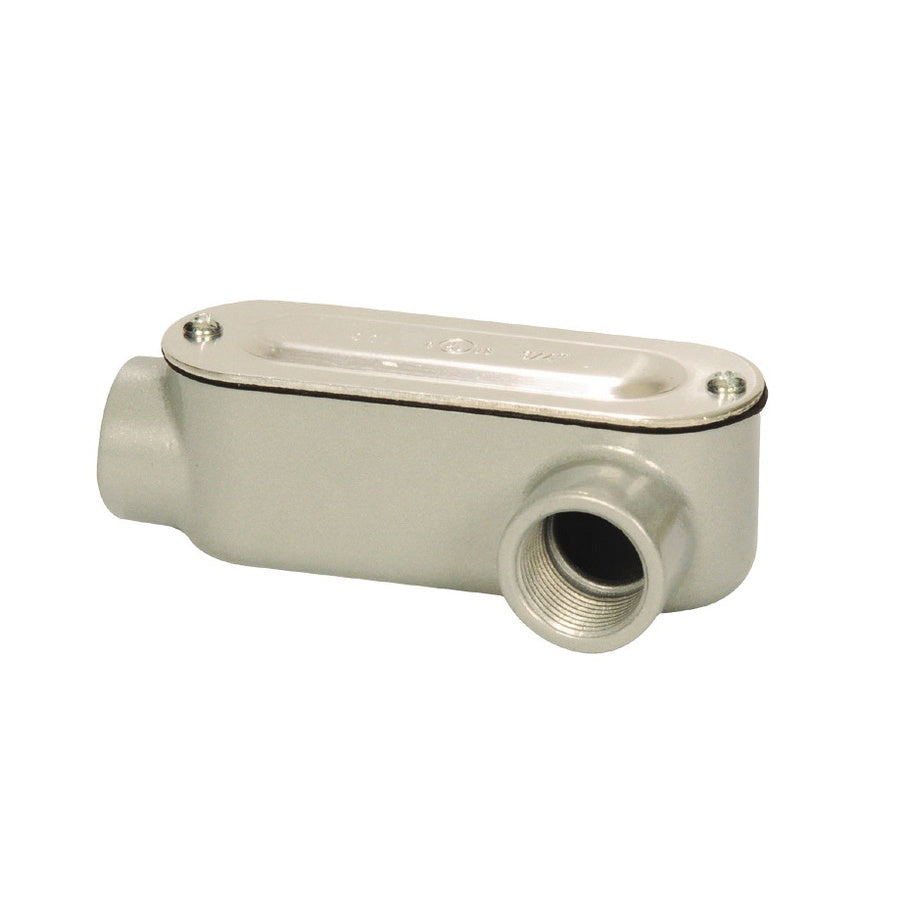

Sepco LL2ACG Die Cast Copper Free Aluminum Type LL Conduit Body With Cover And Gasket 3/4 Inch

Product Description

Sepco LL2ACG is a conduit body made of copper-free die-cast aluminum. Designed for trade size three-fourth inch, it protects and routes rigid and IMC conduits through two NPT threaded tapered hubs set at a ninety-degree angle.

• Neoprene gasket with stamped cover seals out dust and ensures safety
• Left-side access for easy pulling, splicing, and maintenance
• Capacity of 7.3 cubic inches, accommodating three six AWG conductors

Product Highlights

This conduit body is UL E198259 listed and features a flat back design for easy mounting on flat surfaces. It has a total dimension of five point zero six inches by two point two five inches by one point six three inches, making it compact and efficient for various installation scenarios.

Product Information

Standard Information

• Item Name: Conduit Body With Cover And Gasket
• Brand: Sepco

Technical Specifications

• Trade Size: 3/4 Inch
• Conduit Body Style: Type LL
• Material: Copper-Free Die Cast Aluminum
• Cubic Capacity: 7.3
• Dimensions: 5.06 Inch Length x 2.25 Inch Width x 1.63 Inch Height
• Cover Type: Screw-On
• Conductor Capacity: (3) 6 AWG
• Connection Type: Threaded
• Standards: UL E198259 Listed, cULus Certified
