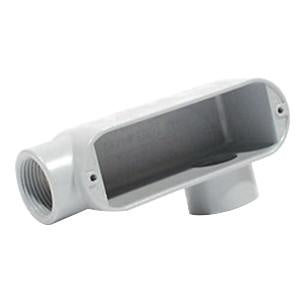

Sepco LL2A Die Cast Copper Free Aluminum Type LL Conduit Outlet Body 3/4-Inch

Product Description

The Sepco LL2A conduit outlet body is made from copper-free die cast aluminum. This product is designed for trade size three-fourths inch applications. It provides easy access to conductors for pulling, splicing, and maintenance. The unit is suitable for use with thin wall conduits.

• Constructed from corrosion-resistant aluminum alloy
• Hubs are tapered threaded for a tight fit
• Rain-tight when used with gasketed covers

Product Highlights

This conduit body features a flat back design to allow for close mounting against walls. It has a cubic capacity of seven point three cubic inches and accommodates up to three wires of size six AWG.

Product Information

Standard Information

• Brand: Sepco
• MPN: LL2A

Technical Specifications

• Trade Size: 3/4 Inch
• Conduit Body Style: Type LL
• Number of Hubs: 2
• Cover Type: Screw-On
• Connection Type: Threaded
• Cubic Capacity: 7.3
• Dimensions: 5.06 Inch Length x 2.25 Inch Width x 1.63 Inch Height
• Material: Copper-Free Die Cast Aluminum
