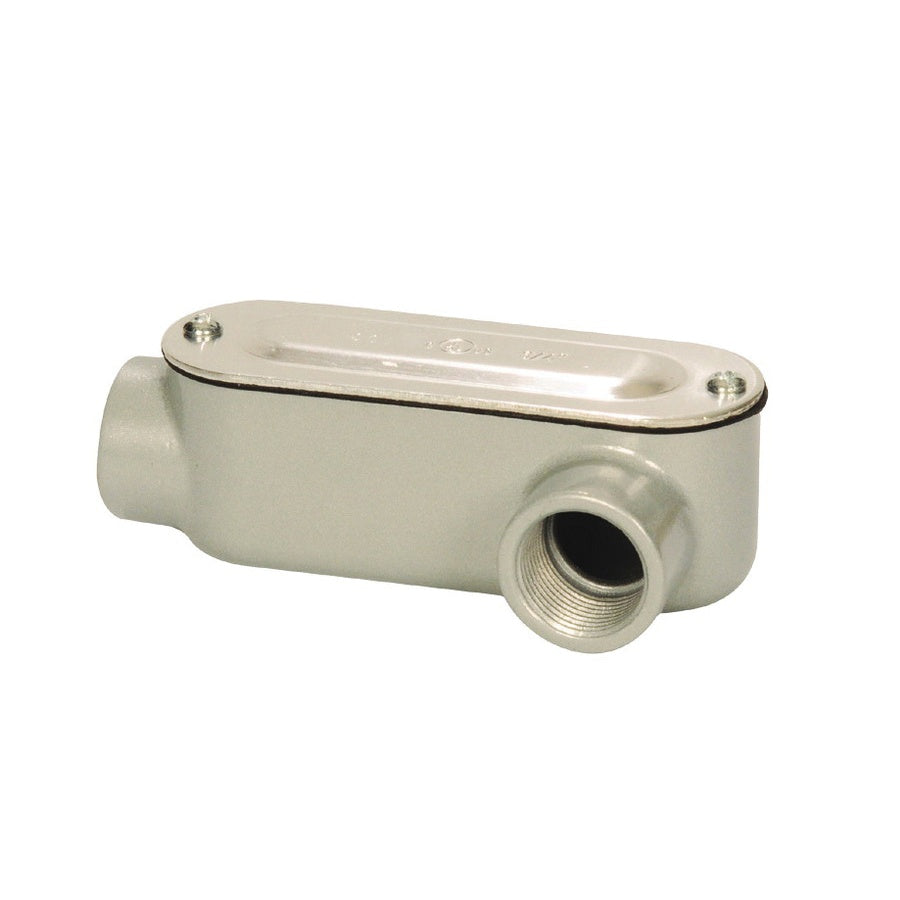

Sepco LL1ACG Die Cast/Copper-Free Aluminum Type LL Conduit Body With Cover And Gasket 1/2-Inch

Product Description

Sepco LL1ACG conduit body is designed for trade size 1/2 inch. It routes and protects conduits through two tapered NPT threaded hubs oriented at a 90-degree angle. This conduit body is made from high-strength die-cast, copper-free aluminum that provides resistance against corrosion and weathering. With a capacity of 4.35 cubic inches, it offers easy left-side access to conductors for maintenance and adjustments.

• Neoprene gasket seals out dust
• Flat back design for secure wall mounting
• Suitable for threaded rigid conduit and IMC

Product Highlights

This conduit body features a screw-on cover and an integrated gasket that enhances protection. It is UL E198259 listed and cULus certified, ensuring compliance with industry standards.

Product Information

Standard Information

• Brand: Sepco
• Model Number: LL1ACG

Technical Specifications

• Trade Size: 1/2 inch
• Conduit Body Style: Type LL
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Left Side
• Cubic Capacity: 4.35 cubic inches
• Material: Die Cast/Copper-Free Aluminum
• Dimensions: 4.31 inch length x 2.06 inch width x 1.38 inch height
• Finish: Aluminum Enamel
• For Use With: Threaded Rigid/IMC Conduit
• Hub Placement: 90 Degree
• Standards: UL E198259 Listed, cULus Certified
• Manufacturer Name: Sepco
• Manufacturer Part Number: LL1ACG
