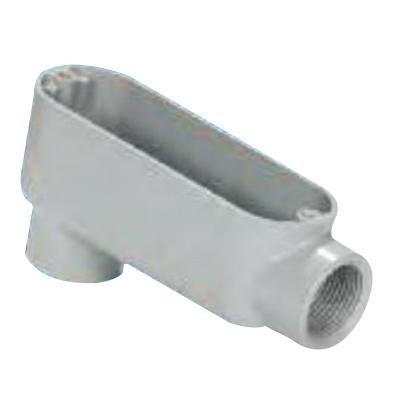

Sepco LB8A Sand-Cast/Copper Free Aluminum Type LB Conduit Outlet Body 3-Inch

Product Description

The Sepco LB8A is a conduit outlet body made from sand-cast, copper-free aluminum. This product features a trade size of three inches. The flat back design allows for easy mounting close to walls. This conduit body is suitable for rigid and IMC conduits, making it versatile for various installations. It has a cubic capacity of one hundred eighty-three point five cubic inches and can accommodate conductors up to four over zero AWG. The UL and cULus listings ensure that this product meets industry safety standards.

• Constructed from sand-cast/copper-free aluminum
• Flat back design for easy wall mounting
• UL and cULus listed for safety

Product Highlights

Features an NPT connection and tapered threaded hubs for secure fitting. This product provides easy access for pulling, splicing, and maintenance of conductors.

Product Information

Standard Information

• Brand: Sepco
• MPN: LB8A

Technical Specifications

• Trade Size: 3 Inch
• Conduit Body Style: Type LB
• Cover Type: Screw-On
• Number of Hubs: 2
• Conductor Capacity: 4/0 AWG
• Cubic Capacity: 183.5
• Dimensions: 12.81 Inch Length x 4.5 Inch Width x 5.94 Inch Height
• Material: Sand Cast/Copper-Free Aluminum
• Finish: Aluminum Enamel
• Connection Type: Threaded
• For Use With: Threaded Rigid/IMC Conduit
