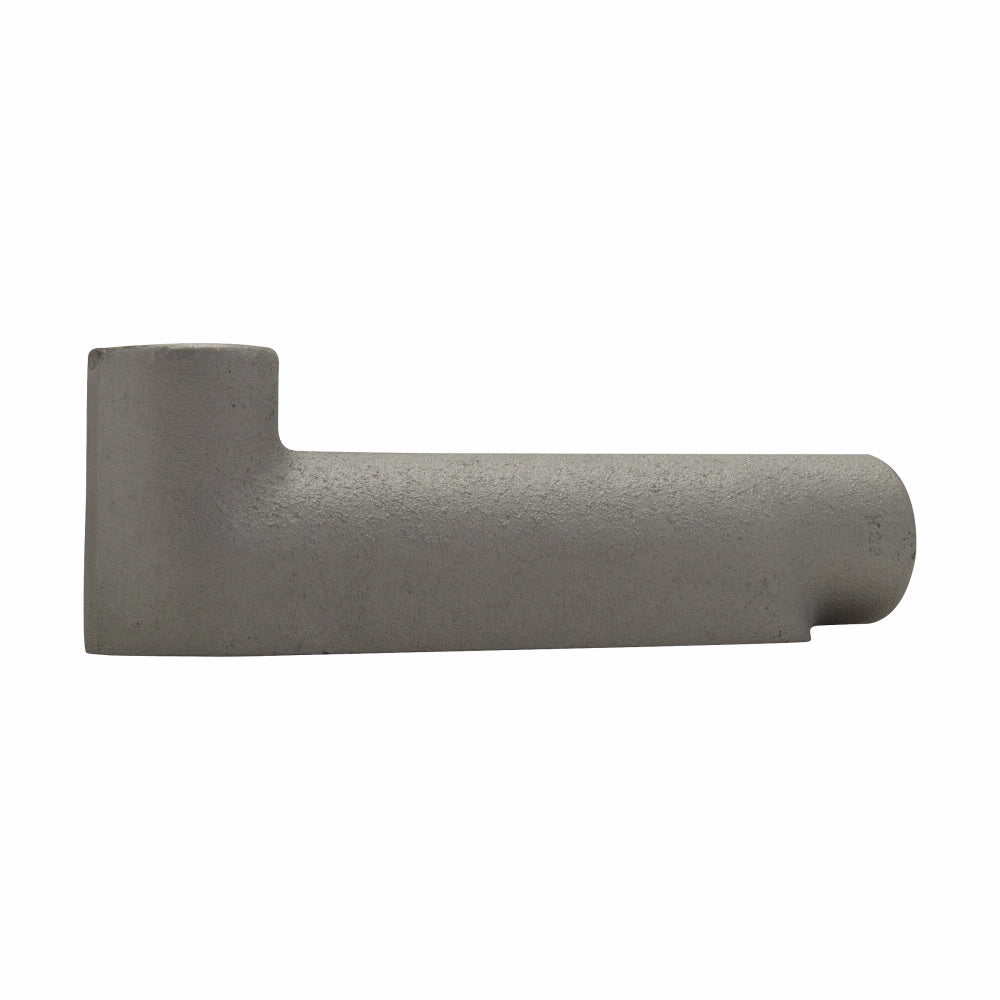

SEPCO LB7AT 2-1/2 Inch Type LB Conduit Body

Product Description

The SEPCO LB7AT is a two and a half inch Type LB conduit body. It provides access for pulling, splicing, and maintenance of conductors. Made from die-cast, copper-free aluminum alloy, it offers strength and corrosion resistance. Designed for use with rigid and IMC conduits, this conduit body facilitates easy installation close to walls due to its flat back design. The NPT connections feature tapered threaded hubs for secure attachment.

• Constructed from die-cast, copper-free aluminum alloy for corrosion resistance.
• Features a flat back design for easy mounting.
• Provides access to conductors for pulling, splicing, and maintenance.

Product Highlights

This conduit body is ideal for electrical installations where access to conductors is essential.

Product Information

Standard Information

• Body Type: Type LB
• Hub Size: 2-1/2 inches

Technical Specifications

• Connection Type: Thread
• Material: Copper-Free Aluminum
• Cubic Capacity: 71.2 cu-in
• Dimensions: 12.81 inches L x 4.5 inches W x 5.31 inches H
• Hub Placement: 90 degrees
• Standards: cULus Certified, UL Listed E198259
