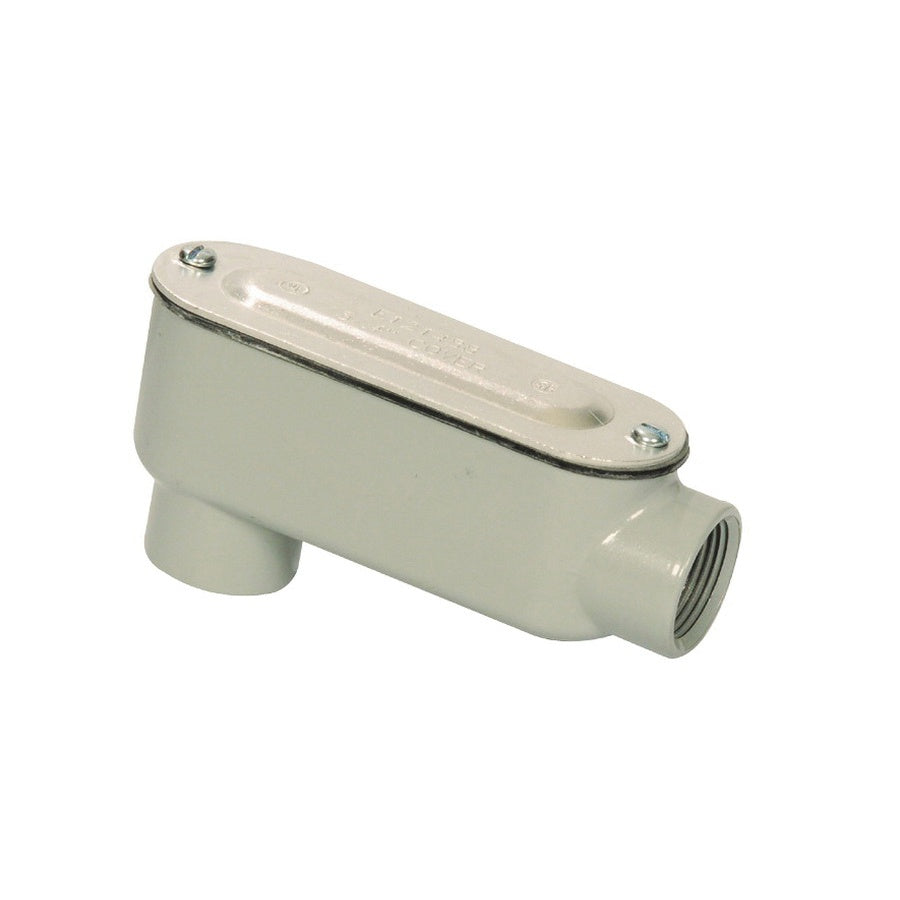

Sepco LB7ACG Sand Cast/Copper Free Aluminum Type LB Conduit Body With Cover And Gasket 2-1/2 Inch

Product Description

The Sepco LB7ACG is a conduit body designed to route and protect rigid and IMC conduits. With a trade size of two and a half inches, this conduit body includes two NPT threaded tapered hubs at a ninety-degree angle.

• Constructed from sand cast and copper-free aluminum
• Capacity of seventy-one point two cubic inches, accommodating up to three four-aught AWG conductors
• Includes a screw-on cover and gasket for secure protection

Product Highlights

This conduit body offers direct access for pulling, splicing, and maintenance. It is UL E198259 listed and cULus certified, ensuring reliable performance in various electrical installations.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: LB7ACG

Technical Specifications

• Trade Size: 2-1/2 Inch
• Conduit Body Style: Type LB
• Number of Hubs: 2
• Cover Type: Screw-On
• Cubic Capacity: 71.2
• Dimensions: 12.81 Inch Length x 4.5 Inch Width x 5.31 Inch Height
• Material: Sand Cast/Copper-Free Aluminum
• Finish: Aluminum Enamel
• For Use With: Rigid Conduit/IMC
• Hub Placement: 90 Degree
• Conductor Capacity: (3) 4/0 AWG
• Connection Type: Threaded
