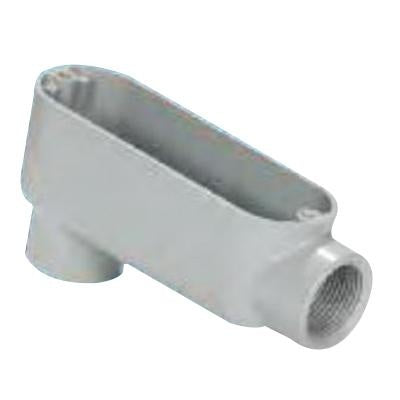

Sepco LB7A Sand-Cast/Copper Free Aluminum Type LB Conduit Outlet Body 2-1/2-Inch

Product Description

Sepco LB7A conduit outlet body is designed for use in electrical applications. This product has a trade size of two and one-half inches and is constructed from sand-cast, copper-free aluminum, ensuring durability against corrosion and weather conditions. The flat back design allows for simple mounting against walls. The conduit body has dimensions of twelve point eighty-one inches in length, four point five inches in width, and five point thirty-one inches in height. It offers a cubic capacity of seventy-one point two cubic inches and accommodates conductors up to size four over zero AWG. This outlet body is suitable for rigid and IMC conduits and features NPT connections with tapered threaded hubs, providing easy access to conductors for pulling, splicing, and maintenance. The product is UL and cULus listed for safety and compliance.

• Constructed from corrosion-resistant sand-cast copper-free aluminum
• Flat back design for easy wall installation
• Accommodates conductors up to four over zero AWG

Product Highlights

Designed for reliable conduit installation, the Sepco LB7A conduit outlet body provides a secure and accessible solution for electrical connections.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: LB7A

Technical Specifications

• Trade Size: 2-1/2 Inch
• Cubic Capacity: 71.2
• Conductor Capacity: 4/0 AWG
• Connection Type: Threaded
• Dimensions: 12.81 Inch Length x 4.5 Inch Width x 5.31 Inch Height
• Material: Sand Cast/Copper-Free Aluminum
• Hub Placement: 90 Degree
• Standards: cULus Certified, UL Listed E198259
