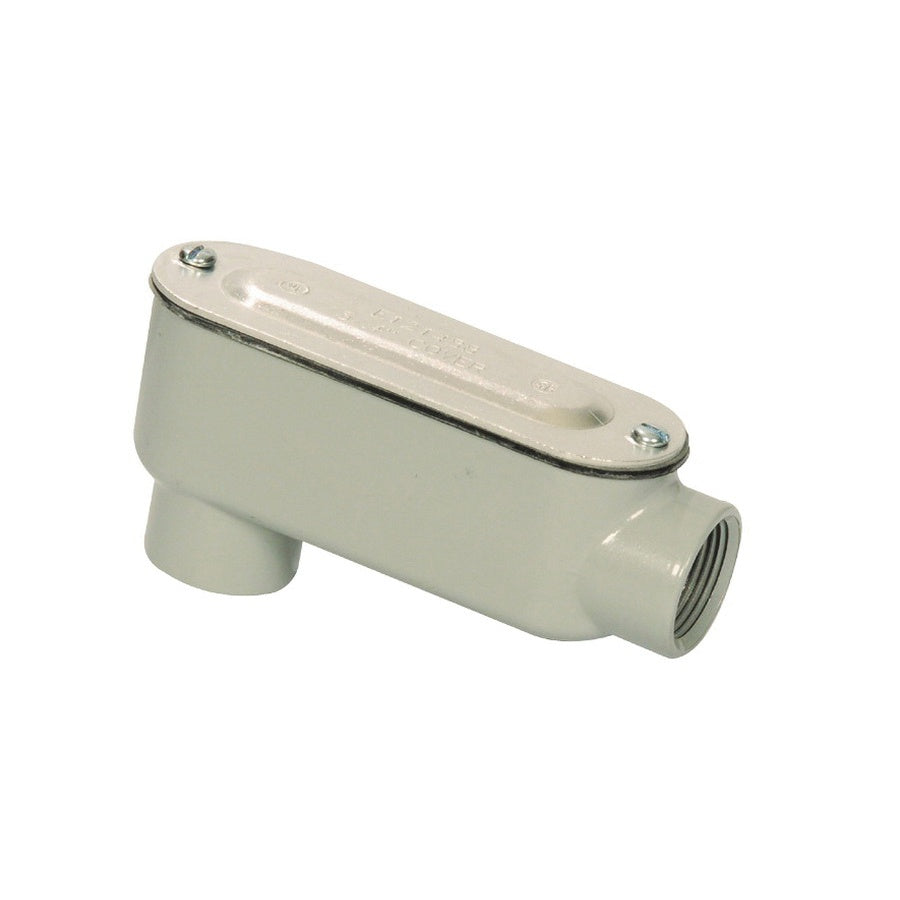

Sepco LB6ACG Die Cast Copper Free Aluminum Type LB Conduit Body With Cover And Gasket 2 Inch

Product Description

Sepco LB6ACG is a conduit body designed for trade size two inches, crafted from die-cast copper-free aluminum. This type LB conduit body manages and protects rigid and intermediate metal conduits. It features two NPT threaded tapered hubs oriented at ninety degrees for effective routing. The unit provides access to conductors for splicing and maintenance, making it suitable for various electrical applications. This version includes a gasket and a screw-on cover, ensuring durability and protection against physical damage.

• Constructed of copper-free die-cast aluminum
• Total cubic capacity of seventy-one point two cubic inches
• Back access for easy conductor splicing and maintenance

Product Highlights

Ideal for installations that require safe and accessible routing of electrical conduits, the Sepco LB6ACG is UL listed for safety and performance.

Product Information

Standard Information

• Brand: Sepco
• Part Number: LB6ACG

Technical Specifications

• Trade Size: 2 Inch
• Conduit Body Style: Type LB
• Hub Placement: 90 Degree
• Cover Type: Screw-On
• Conductor Capacity: (3) 4/0 AWG
• Cubic Capacity: 71.2
• Material: Copper-Free Die Cast Aluminum
• Dimensions: 10.06 Inch Length x 3.12 Inch Width x 4.31 Inch Height
