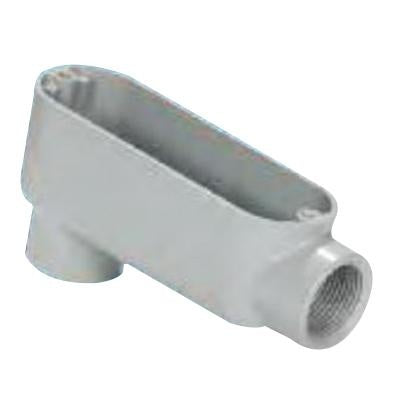

Sepco LB6A Die Cast Copper Free Aluminum Type LB Conduit Outlet Body 2-Inch

Product Description

Sepco LB6A is a conduit outlet body with a trade size of two inches. Made from die-cast copper-free aluminum, it is designed to withstand corrosion and weather conditions. The flat back design allows for easy installation against walls, making it suitable for various mounting situations.

• Trade size of two inches
• Constructed from copper-free die-cast aluminum
• Dimensions of ten point zero six inches length, three point one two inches width, and four point three one inches height

Product Highlights

This conduit outlet body is ideal for use with rigid and IMC conduits. It has a capacity of seventy-one point two cubic inches and supports conductors up to size four over zero AWG. Designed for efficient maintenance, it features tapered threaded hubs for NPT connections.

Product Information

Standard Information

• Brand: Sepco
• Part Number: LB6A

Technical Specifications

• Trade Size: 2 Inch
• Conduit Body Style: Type LB
• Cubic Capacity: 71.2
• Cover Type: Screw-On
• Connection Type: Threaded
• Material: Copper-Free Die Cast Aluminum
• Dimensions: 10.06 Inch Length x 3.12 Inch Width x 4.31 Inch Height
• Standards: cULus Certified, UL Listed E198259
