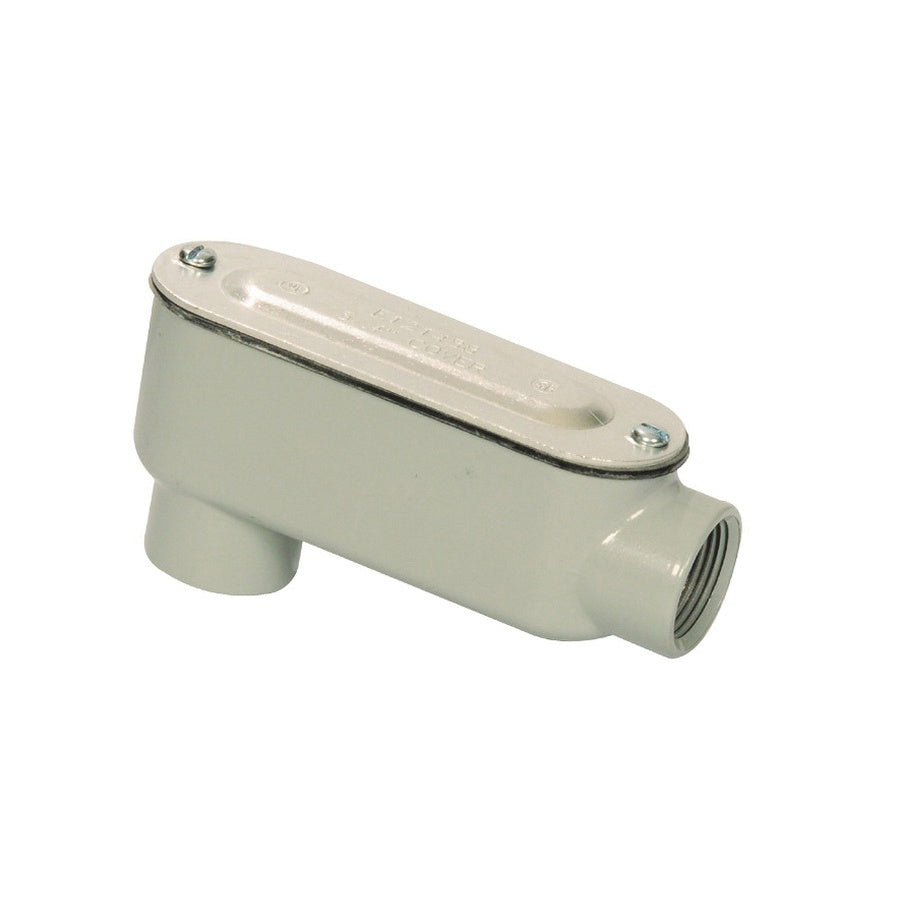

Sepco LB5ACG Die Cast Copper Free Aluminum Type LB Conduit Body With Cover And Gasket 1-1/2 Inch

Product Description

The Sepco LB5ACG is a conduit body designed to protect and route rigid or intermediate metal conduits. This product is made with die-cast copper-free aluminum and measures one and one-half inches in trade size. It features two NPT threaded tapered hubs oriented at ninety degrees.

• Has an internal volume of thirty-three point eight cubic inches.
• Provides access for pulling, splicing, and maintenance through its back side.
• Includes a gasket and screw-on cover to protect electrical connections.

Product Highlights

This conduit body is UL listed, ensuring compliance with safety standards. Its flat back allows easy mounting on flat surfaces. The design helps in maintaining a tidy and secure setup for electrical systems.

Product Information

Standard Information

• Brand: Sepco
• Part Number: LB5ACG

Technical Specifications

• Trade Size: 1-1/2 inch
• Conduit Body Style: Type LB
• Number of Hubs: 2
• Cover Type: Screw-On
• Dimensions: 7.81 inch length x 2.5 inch width x 3.44 inch height
• Cubic Capacity: 33.8 cubic inches
• Material: Copper-Free Die Cast Aluminum
• Finish: Aluminum Enamel
