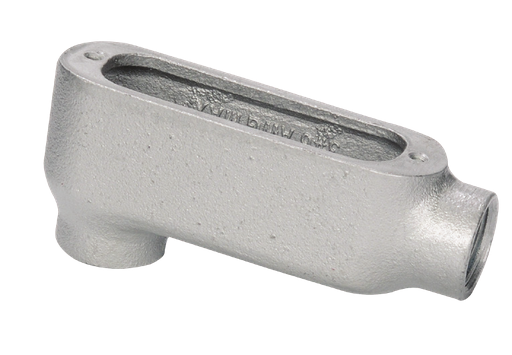

Sepco LB5 Malleable Iron Type LB Conduit Body 1-1/2 Inch

Product Description

The SEPCO LB5 is a 1-1/2 inch Type LB conduit body. It is made for threaded rigid and IMC conduits. This conduit body is constructed from malleable iron and has a zinc-plated and aluminum enameled finish. It allows for easy access to conductors for tasks like pulling, splicing, and maintenance.

• Capacity of 35.3 cubic inches
• Accommodates up to three 1/0 AWG conductors
• UL and cULus listed for safety

Product Highlights

Ideal for use in various electrical applications, the SEPCO LB5 conduit body is designed with a screw-on cover and a flat back for mounting.

Product Information

Standard Information

• Brand: SEPCO
• Model Number: LB5

Technical Specifications

• Trade Size: 1-1/2 Inch
• Conduit Body Style: Type LB
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Back Side
• Conductor Capacity: 3 (1/0 AWG)
• Connection Type: Threaded
• Cubic Capacity: 35.3
• Material: Malleable Iron

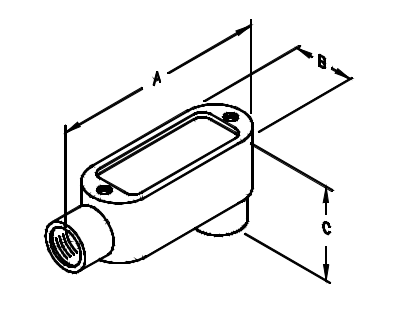

• Dimensions: 8.125 inches Length x 2.625 inches Width x 2.813 inches Height
• Finish: Zinc Plated, Aluminum Enameled
• Hub Placement: 90 Degree
• Standards: UL E121488 Listed, cULus Certified
• Weight: 10 lbs. per 100 pcs.
