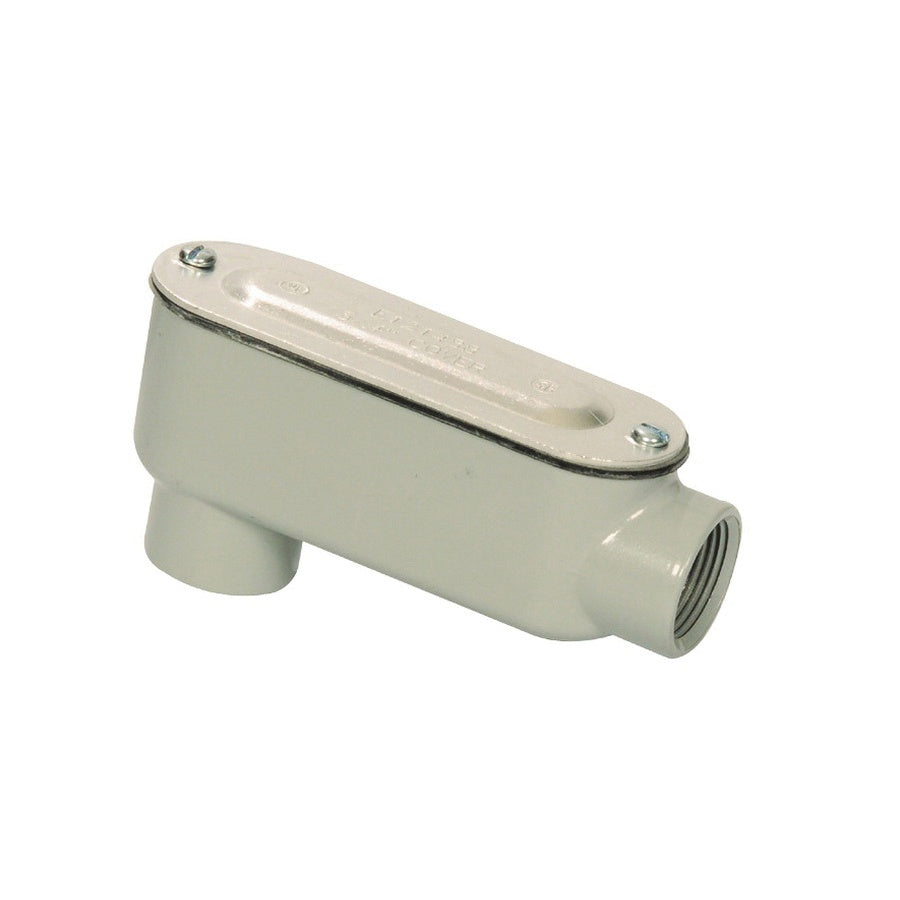

Sepco LB4ACG Die Cast Copper Free Aluminum Type LB Conduit Body With Cover And Gasket 1-1/4 Inch

Product Description

Sepco LB4ACG is a die-cast copper-free aluminum conduit body with a cover and gasket designed to protect and route rigid and IMC conduits. This product features a trade size of one and one-quarter inches and is oriented at ninety degrees with two NPT threaded tapered hubs. The aluminum enameled finish provides durability, while the back-side access allows for easy conductor pulling, splicing, and maintenance.

• Constructed from die-cast copper-free aluminum
• Provides a cubic capacity of thirty-two point three cubic inches
• Includes a neoprene gasket and screw-on cover for secure sealing

Product Highlights

This conduit body fits three conductors of two AWG wire and meets UL E198259 listed and cULus certified standards.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: LB4ACG

Technical Specifications

• Trade Size: 1-1/4 Inch
• Conduit Body Style: Type LB
• Number of Hubs: 2
• Cover Type: Screw-On
• Connection Type: Threaded
• Cubic Capacity: 32.3 cubic inches
• Dimensions: 7.81 Inch Length x 2.5 Inch Width x 3.44 Inch Height
• For Use With: Rigid Conduit/IMC
• Hub Placement: 90 Degrees
