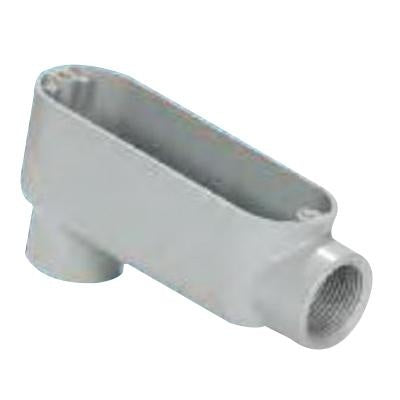

Sepco LB4A Die Cast Copper Free Aluminum Type LB Conduit Outlet Body 1-1/4-Inch

Product Description

The Sepco LB4A is a die-cast copper-free aluminum conduit outlet body designed for conduits with a trade size of one and one-quarter inches. This conduit body is built for durability and offers corrosion and weather resistance. It features a flat back design that simplifies mounting against walls, making installation straightforward and efficient.

• Constructed from die-cast copper-free aluminum
• Designed for use with rigid and IMC conduits
• Accommodates conductors up to size 2 AWG

Product Highlights

This conduit body has a capacity of thirty-two point three cubic inches and includes NPT connections with tapered threaded hubs. It allows easy access to conductors for pulling, splicing, and maintenance, and is UL and cULus listed for safety and compliance.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer Part Number: LB4A

Technical Specifications

• Trade Size: 1-1/4 Inch
• Conduit Body Style: Type LB
• Conductor Capacity: 2 AWG
• Cubic Capacity: 32.3
• Dimensions: 7.81 Inch Length x 2.5 Inch Width x 3.44 Inch Height
• Material: Copper-Free Die Cast Aluminum
• Connection Type: Threaded
• Finish: Aluminum Enamel
