Sepco LB3ACG Die Cast Copper Free Aluminum Type LB Conduit Body With Cover And Gasket 1-Inch

Product Description

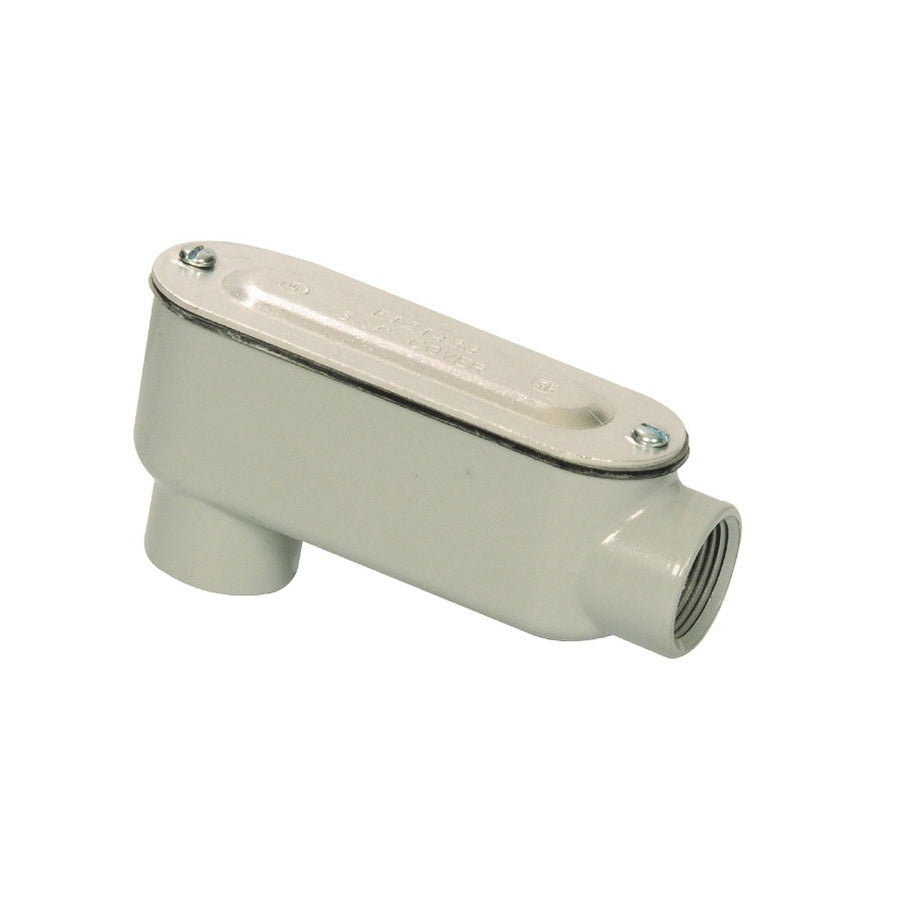

The Sepco LB3ACG conduit body is a practical solution designed to protect and guide rigid or IMC conduits. It features two NPT threaded tapered hubs oriented in a ninety-degree angle, allowing for efficient routing. Constructed from die-cast copper-free aluminum with an enameled finish, this Type LB conduit body has a cubic capacity of twelve point two cubic inches and can accommodate three conductors of size four AWG.

• Neoprene gasket and screw-on cover for dust protection
• Flat back design for easy mounting
• Resistant to corrosion and weather

Product Highlights

This conduit body provides back side access to conductors, simplifying tasks such as pulling and splicing. It comes with a gasket and cover, ensuring robust protection against physical damage.

Product Information

Standard Information

• Brand: Sepco
• MPN: LB3ACG

Technical Specifications

• Trade Size: 1 Inch
• Conduit Body Style: Type LB
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Back Side
• Conductor Capacity: (3) 4 AWG
• Cubic Capacity: 12.2
• Dimensions: 5.87 Inch Length x 1.75 Inch Width x 2.75 Inch Height
• Material: Copper-Free Die Cast Aluminum
• Connection Type: Threaded
• Finish: Aluminum Enamel
• Hub Placement: 90 Degree
