Sepco LB3A Die Cast Copper Free Aluminum Type LB Conduit Outlet Body 1-Inch

Product Description

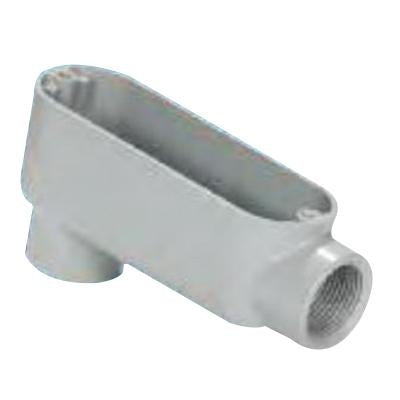

The Sepco Type LB Conduit Outlet Body with MPN LB3A is designed for use with one-inch conduits. This unit is made from corrosion-resistant die-cast copper-free aluminum, ensuring durability in challenging environments. It features a flat back allowing easy installation against walls. The outlet body measures five point eight seven inches in length, one point seven five inches in width, and two point seven five inches in height. This product has a cubic capacity of twelve point two inches, accommodating conductors of up to four AWG. It is suitable for both rigid and IMC conduits, offering NPT connections with tapered threaded hubs that facilitate access for pulling, splicing, and maintenance. The conduit is UL and cULus listed, providing assurance of its quality and compliance.

• Corrosion-resistant construction
• Flat back design for easy mounting
• UL and cULus listed for safety

Product Highlights

This conduit body is built with a die-cast copper-free aluminum for superior durability. It is perfect for use in various electrical applications where conductor access is needed.

Product Information

Standard Information

• Brand: Sepco
• Manufacturer: Sepco

Technical Specifications

• Trade Size: 1 Inch
• Standards: cULus Certified, UL Listed E198259
• Conduit Body Style: Type LB
• Number of Hubs: 2
• Cover Type: Screw-On
• Conductor Capacity: 4 AWG
• Connection Type: Threaded
• Cubic Capacity: 12.2
• Material: Copper-Free Die Cast Aluminum
• Dimensions: 5.87 Inch Length x 1.75 Inch Width x 2.75 Inch Height
• Finish: Aluminum Enamel
• For Use With: Threaded Rigid/IMC Conduit
• Hub Placement: 90 Degree
