SEPCO LB3 Conduit Body 1 in

Product Description

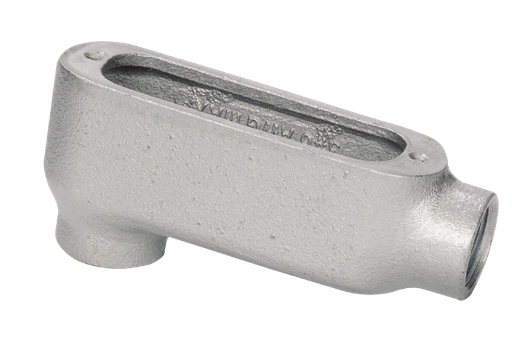

The SEPCO LB3 Conduit Body is made from malleable iron and offers a reliable solution for access to conductors. This product is designed to work with threaded rigid and IMC conduit systems. It has a trade size of 1 inch and allows for splicing, pulling, and maintenance tasks.

• Constructed from durable malleable iron.
• Type LB design provides easy access to conductors.
• Includes screw-on cover for added security.

Product Highlights

With a cubic capacity of twelve point five cubic inches, this conduit body accommodates four AWG conductors. Its two hubs facilitate a ninety-degree hub placement, ensuring efficient installation in tight spaces.

Product Information

Standard Information

• Brand: SEPCO
• UPC: 78599440031

Technical Specifications

• Finish: Zinc-plated, Aluminum Enameled
• Configuration: Type LB
• Conduit Type: Rigid/IMC
• Material: Malleable Iron
• Trade Size: 1 Inch
• Conductor Capacity: 4 AWG
• Cubic Capacity: 12.5
• Dimensions: 6.188 inches Length x 1.813 inches Width x 2.625 inches Height
• Hub Placement: 90 Degree
• Cover Type: Screw-On
• Standards: cULus Certified, UL Listed E121488
