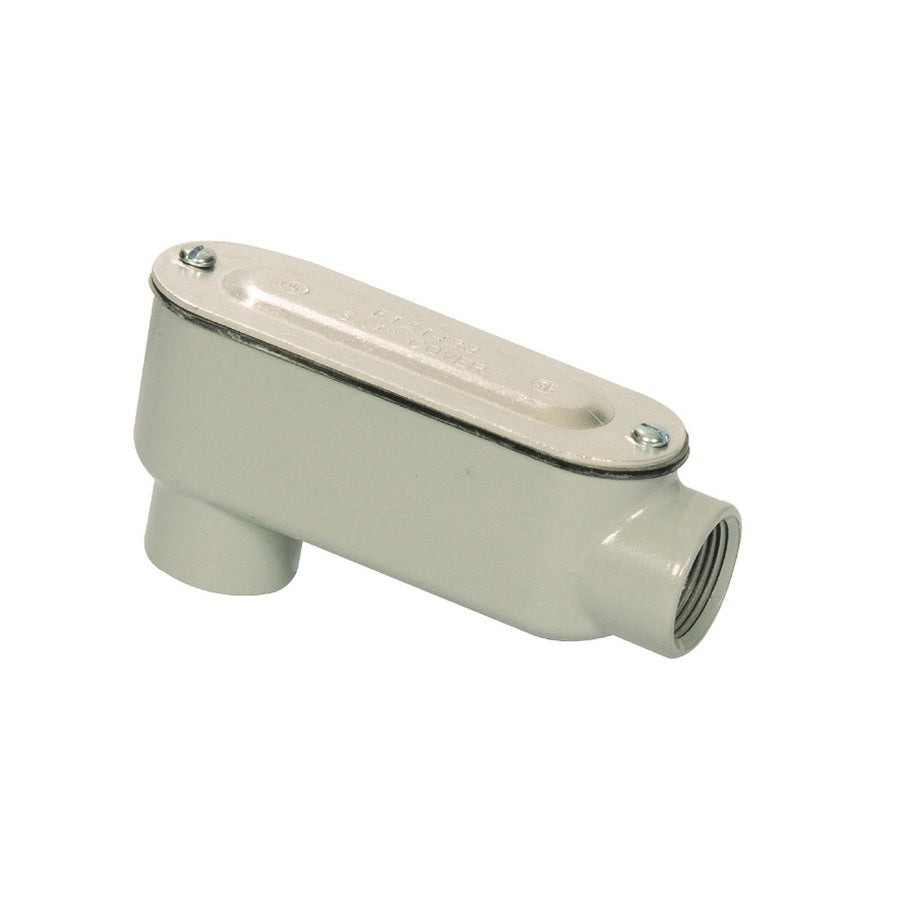

Sepco LB2ACG Die Cast Copper Free Aluminum Type LB Conduit Body With Cover And Gasket 3/4-Inch

Product Description

The Sepco LB2ACG is a conduit body designed for a trade size of three-fourths of an inch. This component is engineered to protect and route rigid and IMC conduits. It features two NPT threaded tapered hubs positioned at a ninety-degree angle. The die-cast copper-free aluminum construction is coated with an aluminum enamel finish for enhanced durability.

• Capacity of 7.25 cubic inches
• Back side access for pulling and splicing
• Includes a gasket and screw-on cover

Product Highlights

This Type LB conduit body provides essential protection for conductors and allows easy access for maintenance.

Product Information

Standard Information

• Brand: Sepco
• Material: Copper-Free Die Cast Aluminum

Technical Specifications

• Trade Size: 3/4 Inch
• Conduit Body Style: Type LB
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Back Side
• Conductor Capacity: (3) 6 AWG
• Cubic Capacity: 7.25
• Dimensions: 5.06 Inch Length x 1.56 Inch Width x 2.44 Inch Height
