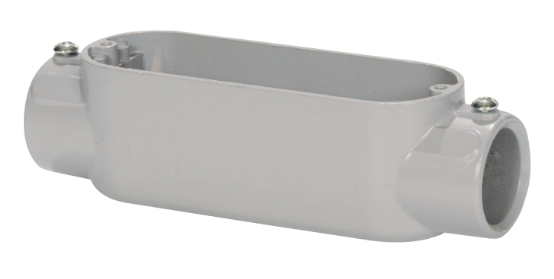

SEPCO C7AT Aluminum Set-Screw Conduit Body

Product Description

The SEPCO C7AT is an aluminum set-screw conduit body designed to provide access to conductors for pulling, splicing, and maintenance. This product is suited for use with thinwall conduit, ensuring easy installation and reliable operation.

• Access for pulling, splicing, and maintenance of conductors.
• Constructed from copper-free aluminum alloy for corrosion and weather resistance.
• Flat back design simplifies mounting close to walls.

Product Highlights

This conduit body is ideal for professionals seeking a durable and efficient solution for conduit access.

Product Information

Standard Information

• Brand: SEPCO
• MPN: C7AT

Technical Specifications

• Application: Access to conductors for pulling, splicing, and maintenance
• Materials (1/2 - 2): Die Cast/Copper-Free Aluminum
• Materials (2 1/2 - 4): Sand-Cast Copper-Free Aluminum
• Finish: Aluminum Enameled
• UL Listed: E198259
• Trade Size: 1/2
• Dimension A: 4.69 inches
• Dimension B: 1.38 inches
• Dimension C: 1.31 inches
• Volume: 4.35 Cu. In.
• Unit Weight: 21 lbs. per 100 pcs.
