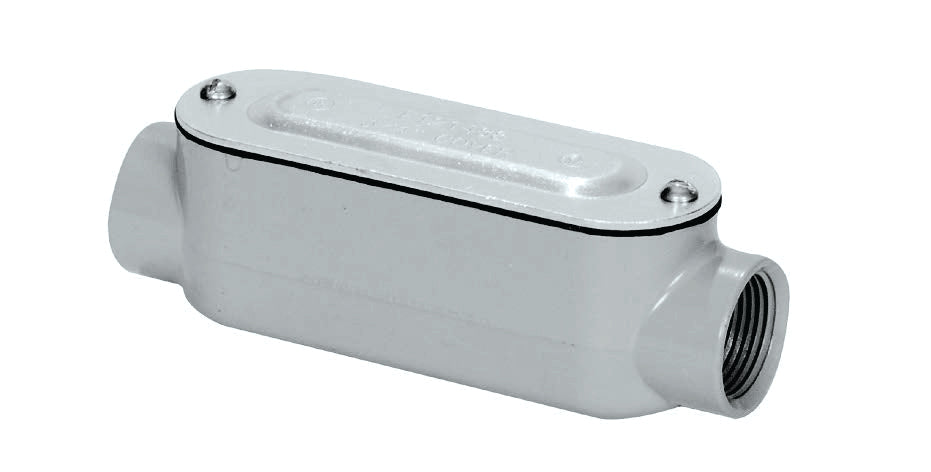

Sepco C5ACG Aluminum Threaded Conduit Body 1-1/2

Product Description

The SEPCO C5ACG aluminum threaded conduit body features a cover and gasket, providing access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC and features tapered threaded hubs (NPT). The conduit body is die cast from high-strength, corrosion and weather resistant, copper-free aluminum alloy and has a flat back design for easy mounting close to walls.

• Tapered threaded hubs (NPT)
• Assembled with neoprene gasket and stamped cover
• Die cast from high-strength, corrosion and weather resistant, copper-free aluminum alloy
• Flat back design for easy mounting close to walls

Product Highlights

Provides access to conductors for maintenance. Features corrosion-resistant aluminum alloy and a flat back for easy mounting.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: C5ACG

Technical Specifications

• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC
• Features: Tapered threaded hubs (NPT) Assembled with neoprene gasket and stamped cover Die cast from high-strength, corrosion and weather resistant, copper-free aluminum alloy. Flat back design for easy mounting close to walls
• Standard Materials 1/2” – 2”: Die cast/Copper-free Aluminum
• Standard Materials 2-1/2” – 4”: Sand-cast/Copper-free Aluminum
• Standard Finish: Aluminum Enameled
• UL Listed: E198259
