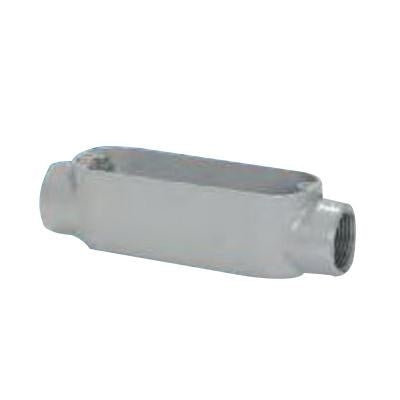

Sepco C5A Die Cast Copper Free Aluminum Type C Conduit Outlet Body 1-1/2-Inch

Product Description

The Sepco C5A is a conduit outlet body designed for use with rigid and IMC conduits. It features a robust die-cast, copper-free aluminum construction. The trade size is 1-1/2 inches, making it suitable for various electrical installations.

• Side access for easy conductor pulling and maintenance.
• UL and cULus listed for safety and compliance.
• Flat back design allows easy mounting against walls.

Product Highlights

This conduit body is ideal for electrical systems requiring reliable performance. It has tapered threaded hubs and accommodates conductors up to 1/0 AWG.

Product Information

Standard Information

• Brand: Sepco
• MPN: C5A

Technical Specifications

• Trade Size: 1-1/2 Inch
• Cubic Capacity: 33.5
• Dimensions: 8.38 Inch Length x 2.5 Inch Width x 2.5 Inch Height
• Material: Copper-Free Die Cast Aluminum
• Connection Type: Threaded
• Conductor Capacity: 1/0 AWG
• Hub Placement: Straight
• Finish: Aluminum Enamel
